Air Bag(s) Arming and Disarming|Diagrams|Page 1457 > < Antilock Brake Automated Bleed Procedure|Page 1453

Camaro V8-6.2L (2010)

  • Maintenance
  • Air Bag(s) Arming and Disarming
  • System Information
  • Diagrams

Page 1
background image

Air Bag(s) Arming and Disarming: Diagrams

Component Connector End Views

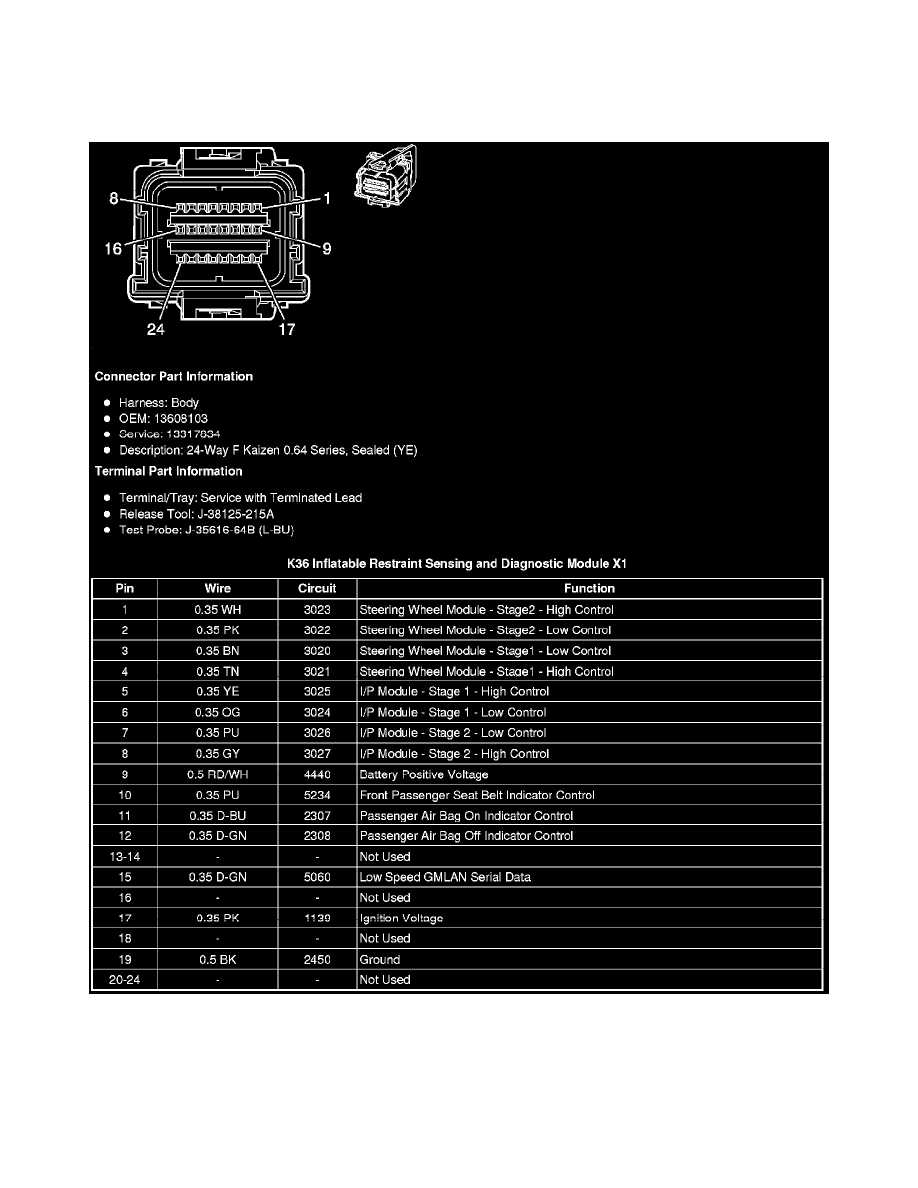

K36 Inflatable Restraint Sensing and Diagnostic Module X1

K36 Inflatable Restraint Sensing and Diagnostic Module X2

  • Maintenance
  • Air Bag(s) Arming and Disarming
  • System Information
  • Diagrams

Air Bag(s) Arming and Disarming|Diagrams|Page 1457 > < Antilock Brake Automated Bleed Procedure|Page 1453
