Ignition Coil: Diagrams

Component Connector End Views

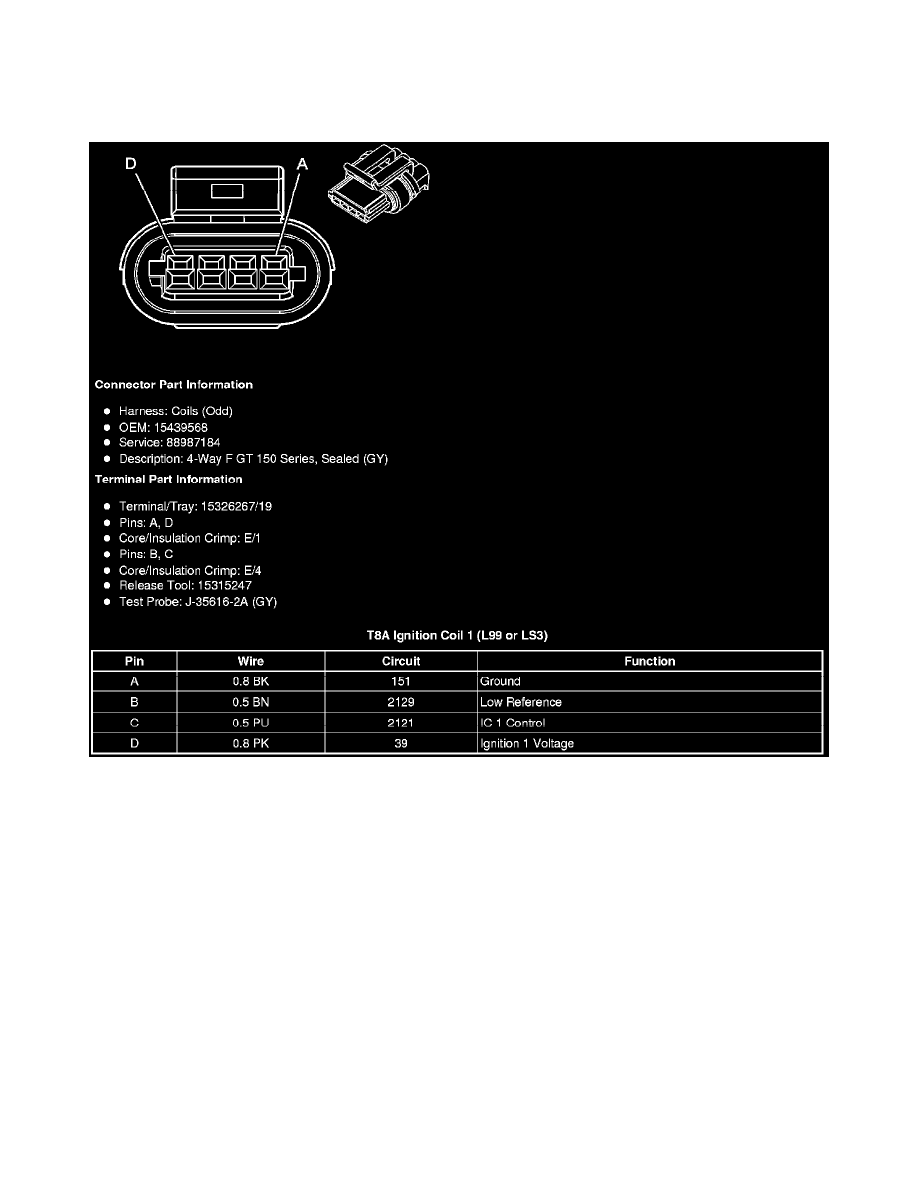

T8A Ignition Coil 1 (L99 or LS3)

T8A Ignition Coil 1 (LLT)
