Cavalier/Z24 V6-191 3.1L VIN T MFI (1994)

Page 1
background image

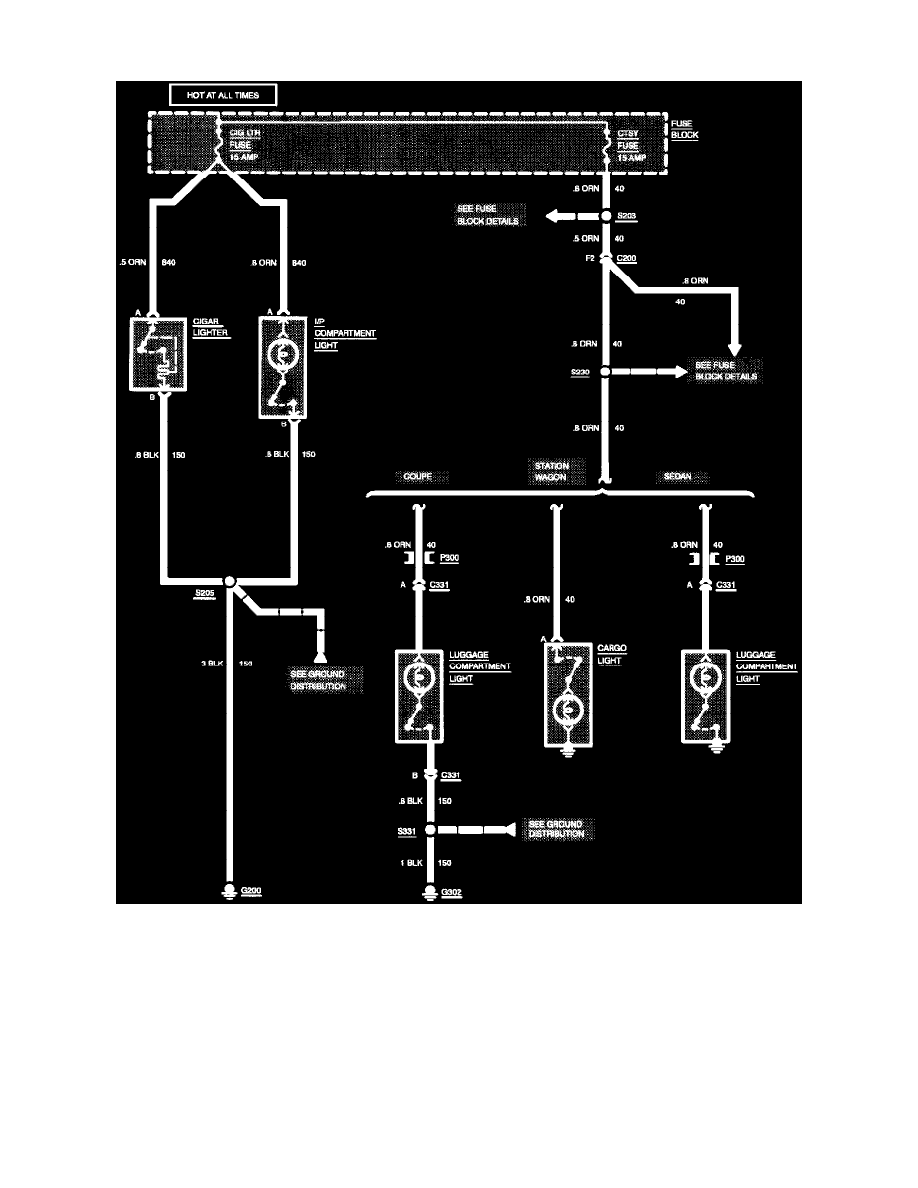

Cigarette Lighter: Electrical Diagrams

Interior Lights: Cigar Lighter/I/P Compartment/Luggage Compartment/Cargo (All Except Convertible)
