Pinout Values and Diagnostic Parameters|Page 2795 > < Pinout Values and Diagnostic Parameters

Cavalier/Z24 V6-191 3.1L VIN T MFI (1994)

Page 2
background image

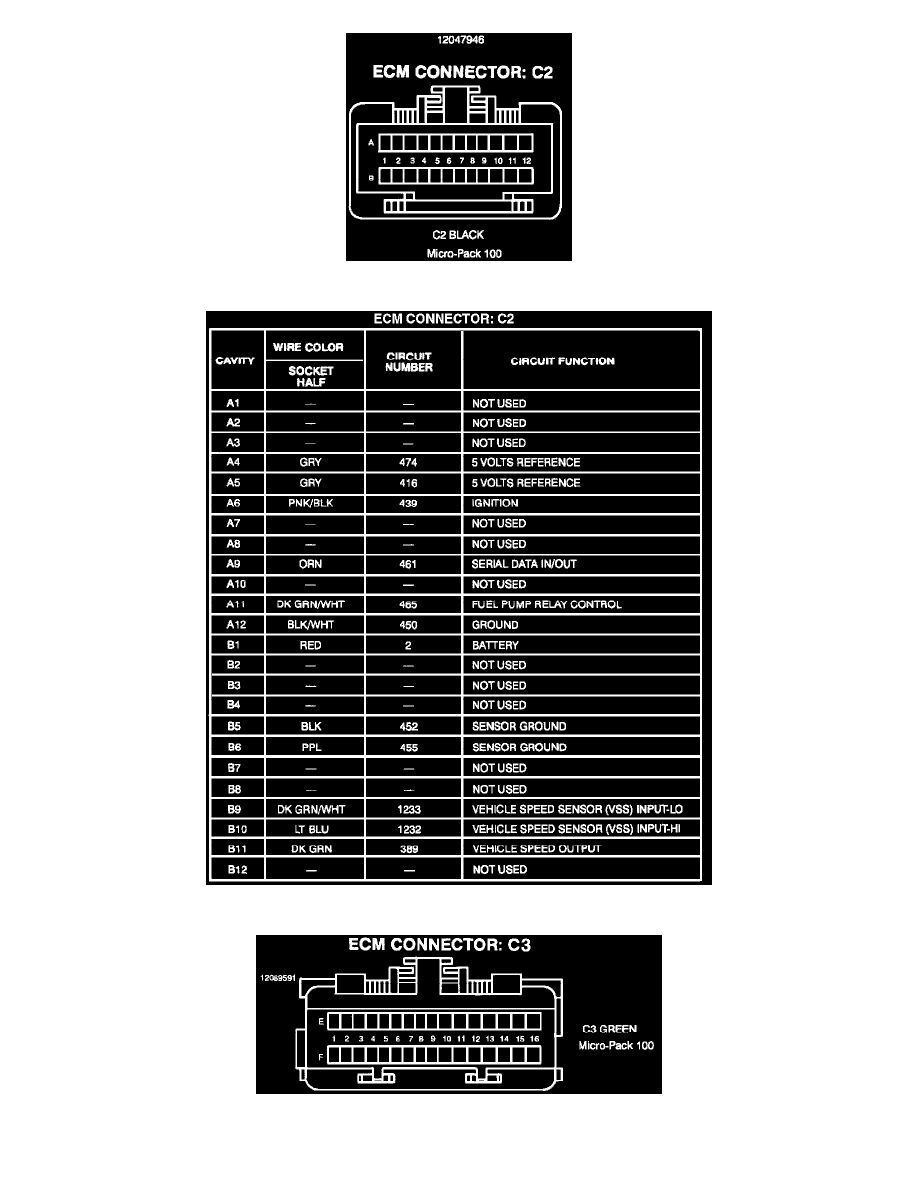

ECM Connector: C2

ECM Connector: C2 (Description)

ECM Connector: C3
