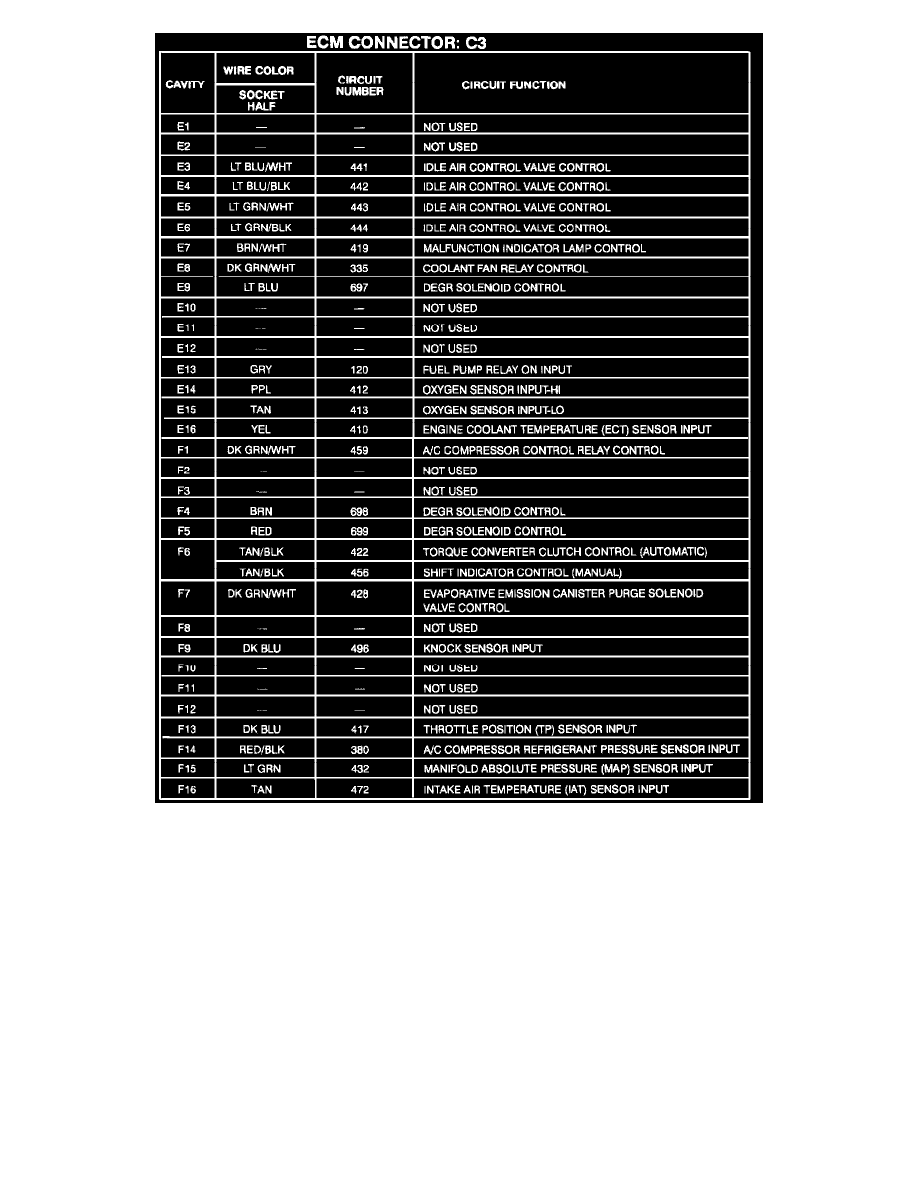

ECM Connector: C3 (Description)

Powertrain Management
Computers and Control Systems
Engine Control Module / Component Information
Testing and Inspection / Pinout Values and Diagnostic Parameters
Page 2795
