Cavalier/Z24 V6-191 3.1L VIN T MFI (1994)

Page 1
background image

Engine Control Module: Specifications

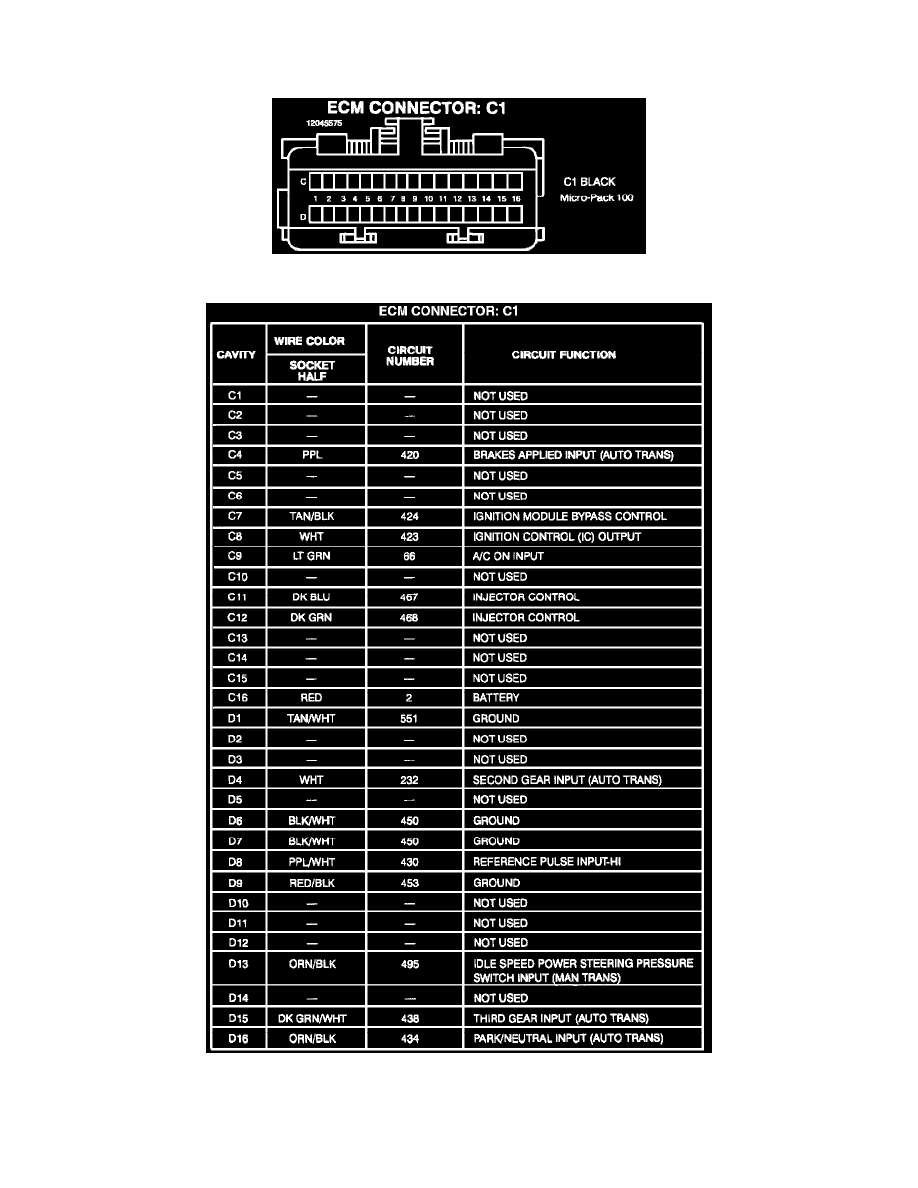

PCM Connector C1 (Black)

ECM Connector: C1

ECM Connector: C1 (Description)
