Engine Control Module: Specifications

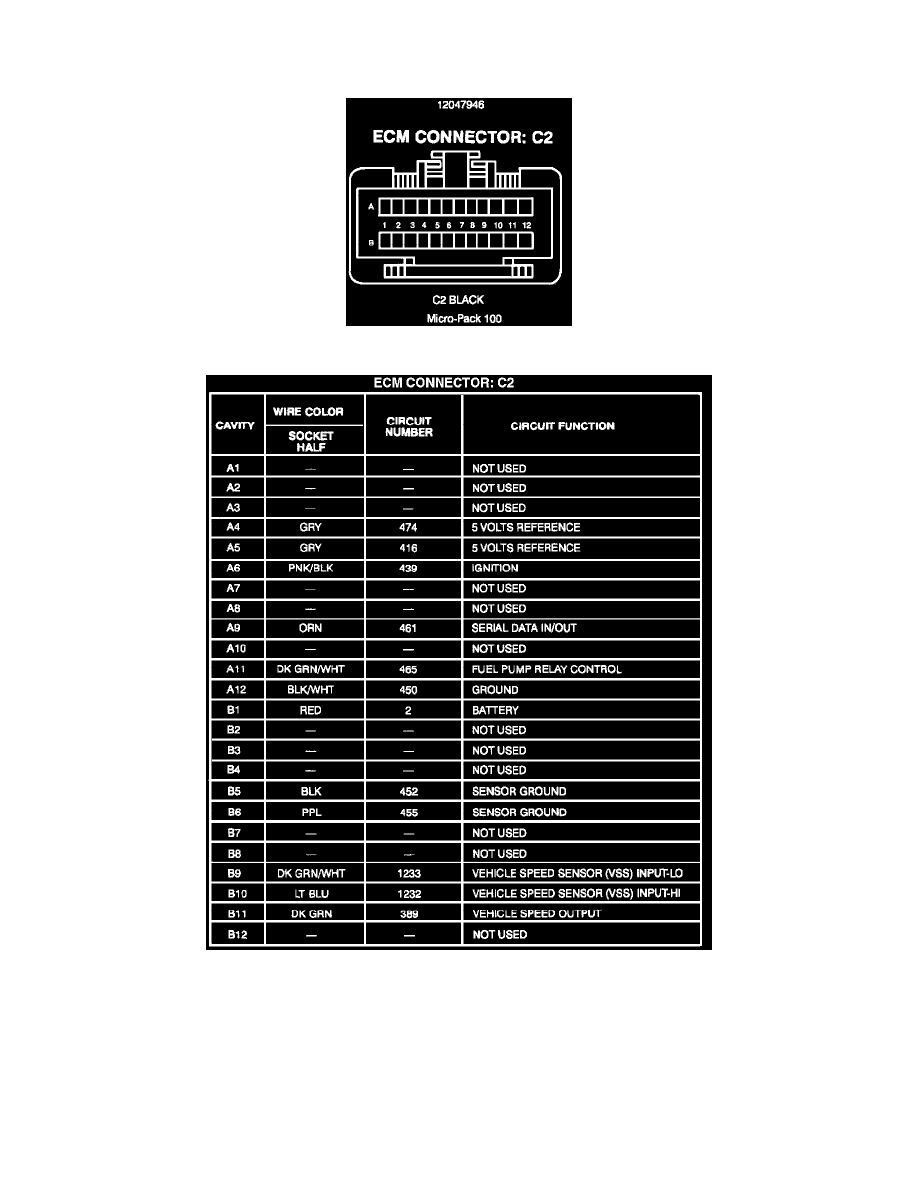

PCM Connector C2 (Black)

ECM Connector: C2

ECM Connector: C2 (Description)
