Cobalt L4-2.4L (2007)

Page 1
background image

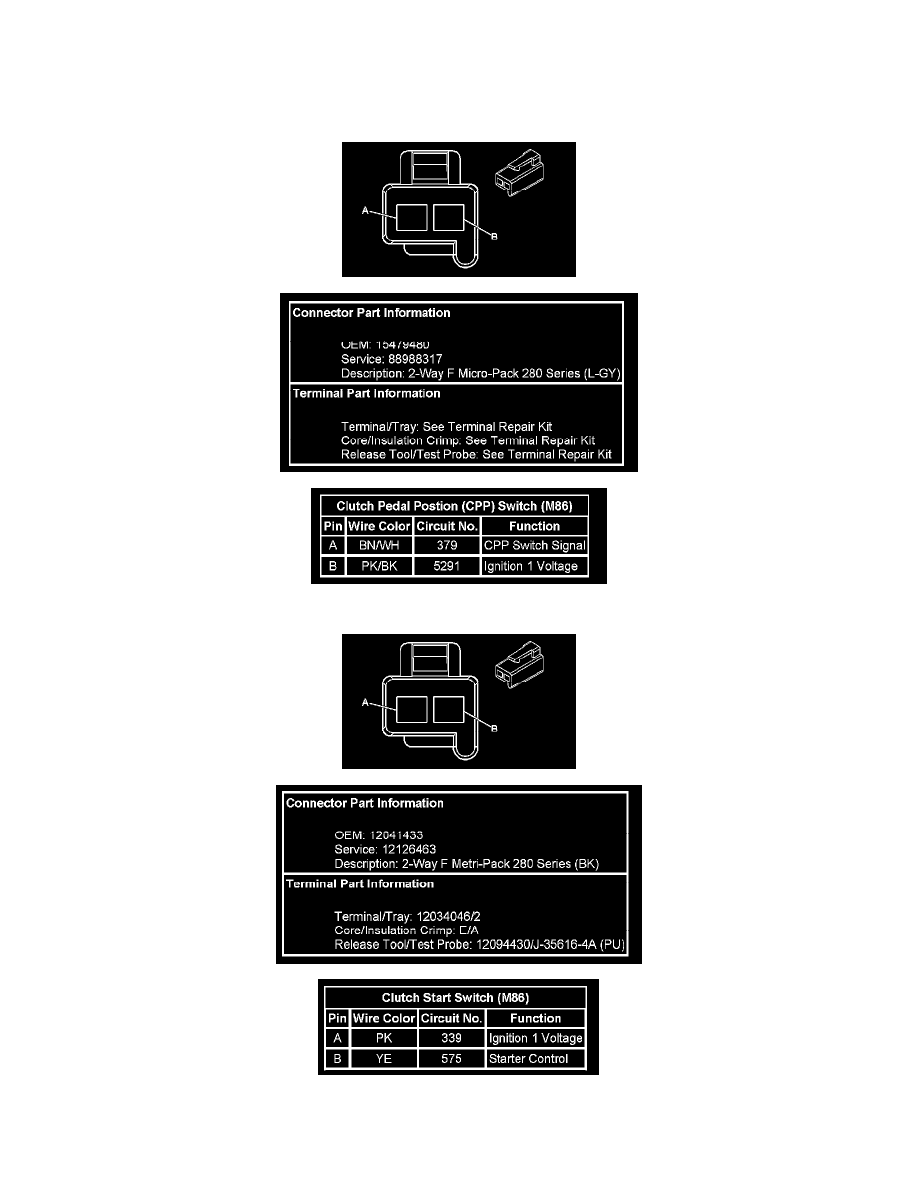

Clutch Switch: Diagrams

Engine Electrical Connector End Views

Clutch Pedal Position (CPP) Switch (M86)

Clutch Start Switch (M86)
