Cruze L4-1.4L Turbo (2011)

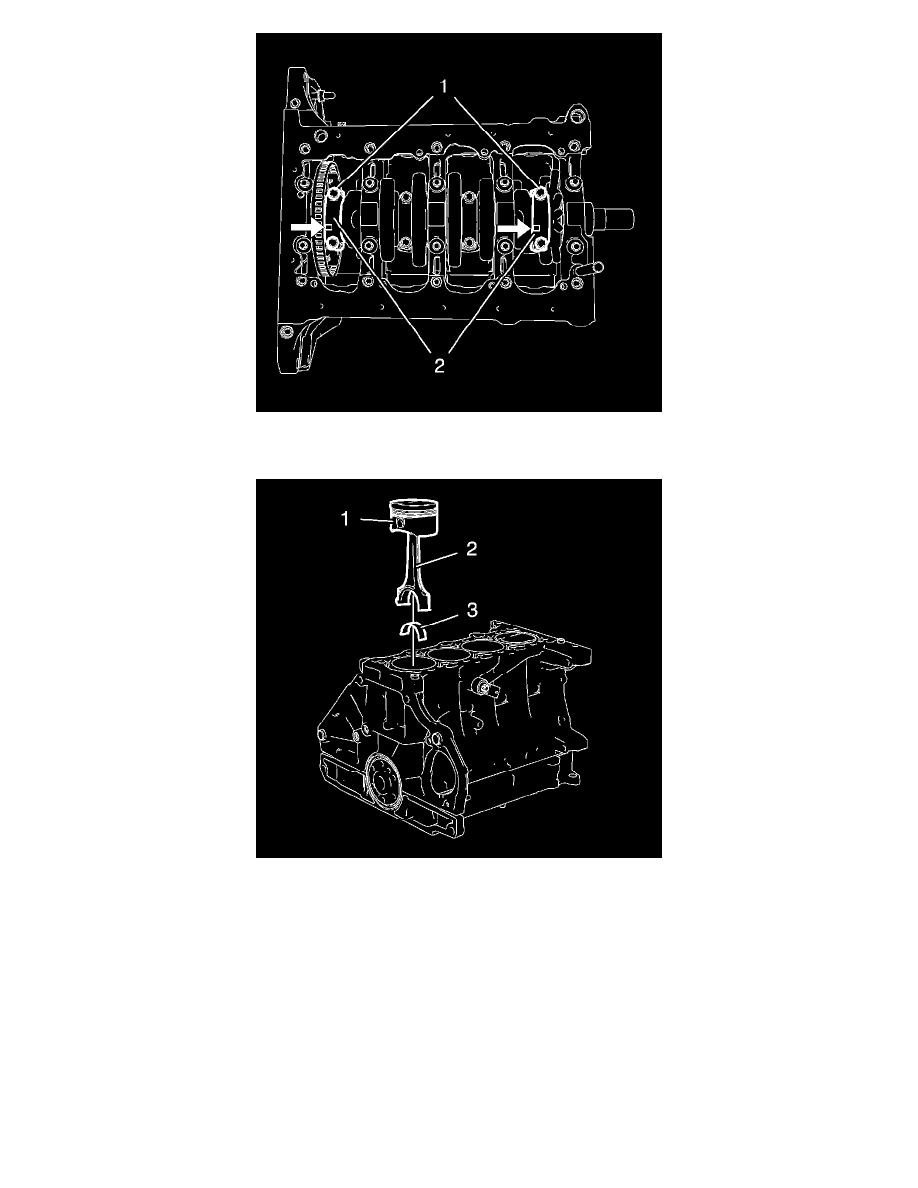

8. Remove the 4 connecting rod bearing cap bolts (1) of cylinder 1 and 4.
9. Remove the 2 connecting rod bearing caps (2) and the 2 connecting rod bearings of cylinder 1 and 4.
10. Remove the 4 pistons (1) and connecting rods (2) and the 4 upper connecting rod bearings (3) from the cylinder block.
Installation Procedure
1. For cleaning and inspection procedure, refer to Piston, Connecting Rod, and Bearing Cleaning and Inspection (1.4L LUH and LUJ) (See: Service
and Repair/Overhaul/46. Piston, Connecting Rod, and Bearing Cleaning and Inspection).
2. Assemble the NEW piston and connecting rod. Refer to Piston and Connecting Rod Assemble (1.4L LUH and LUJ) (See: Service and
Repair/Overhaul/47. Piston and Connecting Rod Assemble).
