Cruze L4-1.4L Turbo (2011)
Timing Chain: Service and Repair
Camshaft Timing Chain Replacement
Special Tools
EN-955-1 - Fixing Pin from EN-955 - Kit
For equivalent regional tools, refer to Special Tools (See: Tools and Equipment).
Removal Procedure
1. Open the hood.
2. Remove the engine front cover with oil pump. Refer to Engine Front Cover with Oil Pump Replacement (See: Timing Cover/Service and Repair).
3. Push the timing chain (2) in direction to the timing chain tensioner (1) and secure the tensioner with EN-955-1 - fixing pin (3).

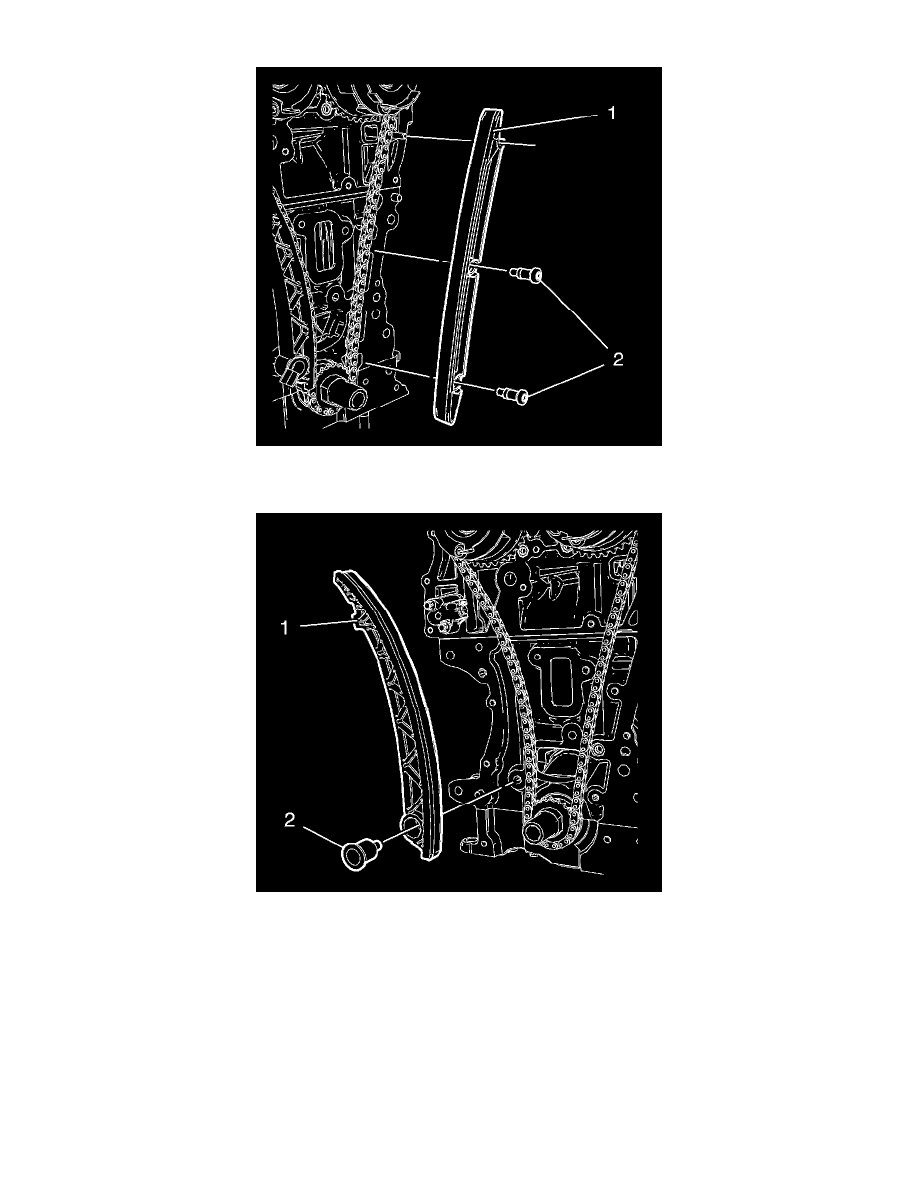

4. Remove the 2 upper timing chain guide bolts (1).
