Cruze L4-1.4L Turbo (2011)
Note: The thickness of the sealing bead should be 2 mm (0.0787 in).

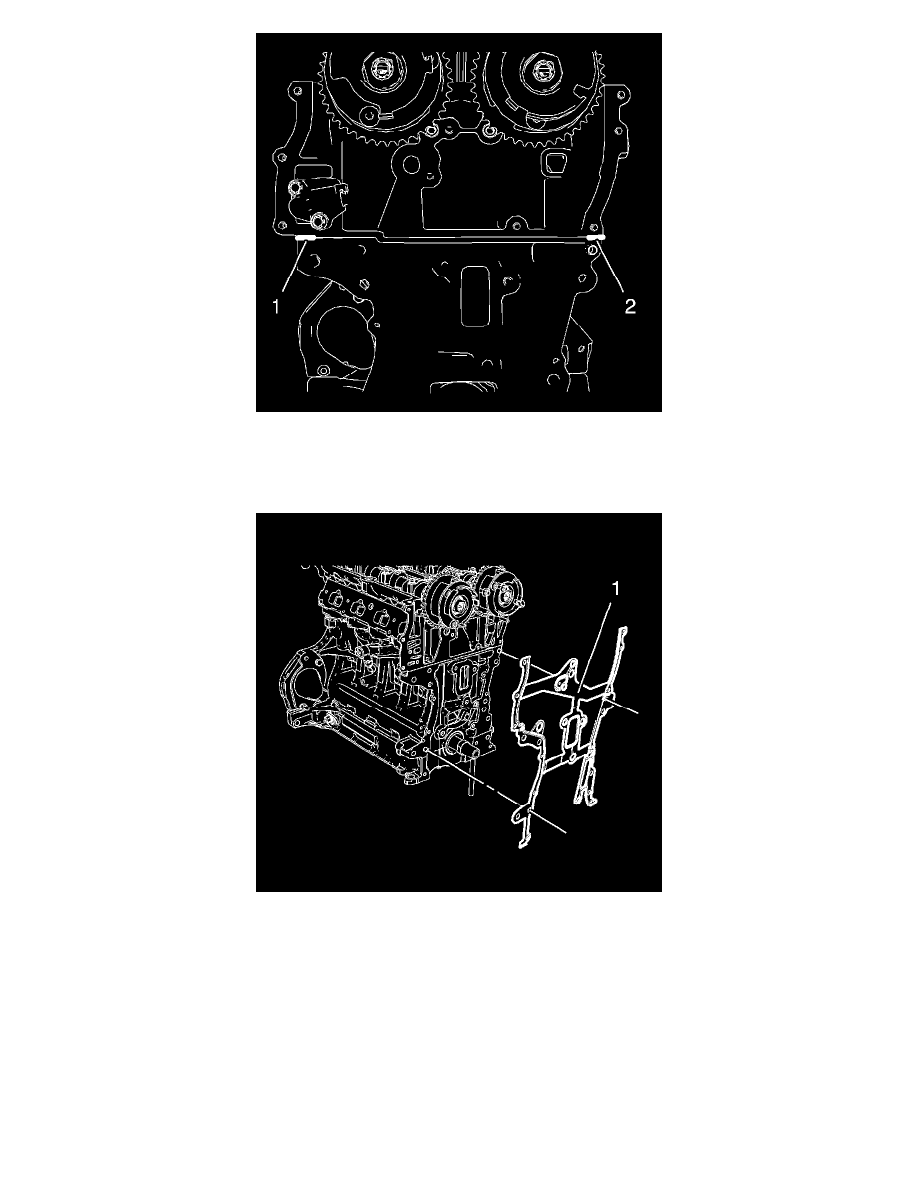

2. Apply sealing compound to the shown areas (1) and (2). Refer to Adhesives, Fluids, Lubricants, and Sealers (See: Specifications/Adhesives,
Fluids, Lubricants, and Sealers).
Note: Mind the guide sleeves.
3. Install the engine front cover gasket (1).
