Ignition Coil|Diagrams|Page 4372 > < Disassembled Views|Page 4368

Equinox AWD V6-3.0L (2010)

Page 1
background image

Ignition Coil: Diagrams

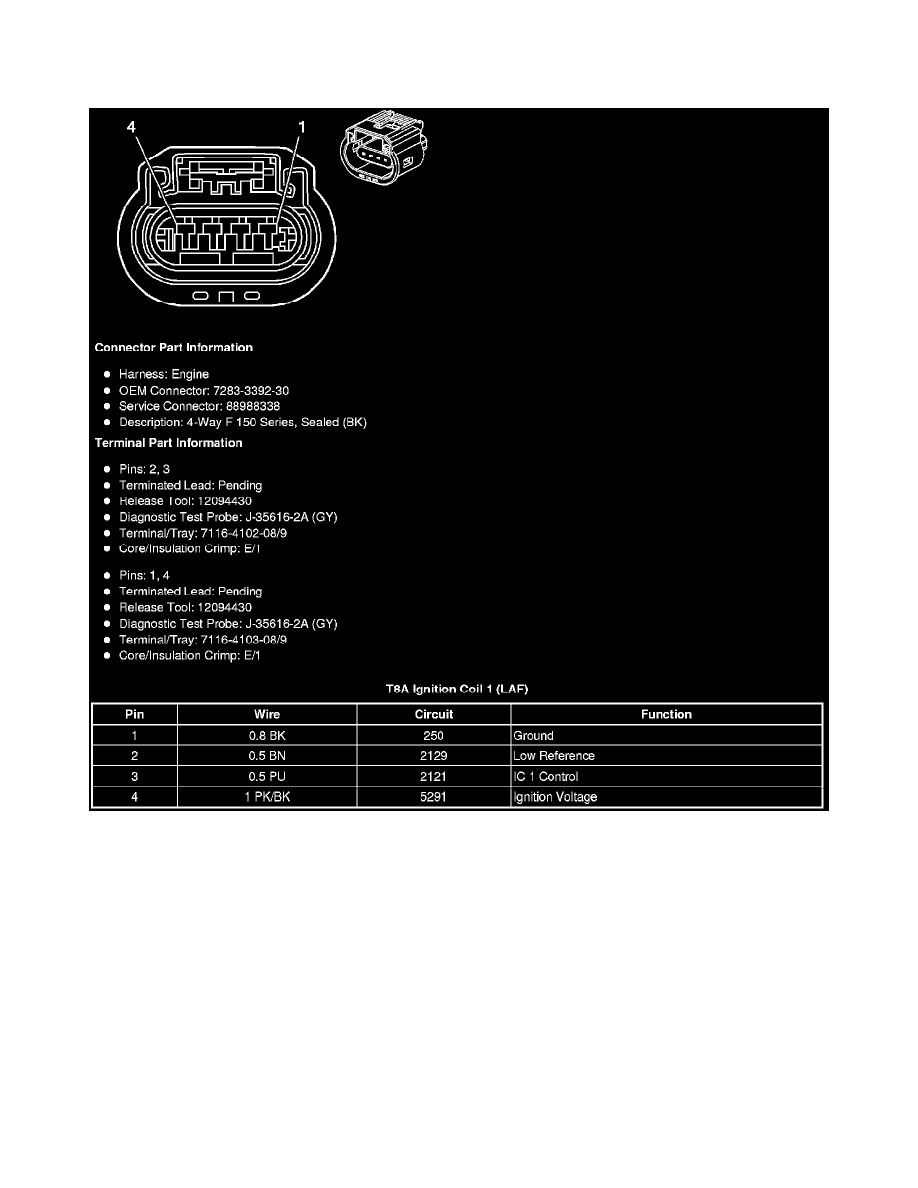

T8A Ignition Coil 1 (LAF)

T8A Ignition Coil 1 (LF1)
