Chevrolet Express 2500 V8-4.8L (2007)17 · Lighting and Horns
17 · Electrical

Map Light: Diagrams

Make
Chevrolet
Model
Express 2500
Engine
V8-4.8L
Year
2007
Section
Map Light › Diagrams
Lighting and HornsDiagrams · page 1 of 3
background image

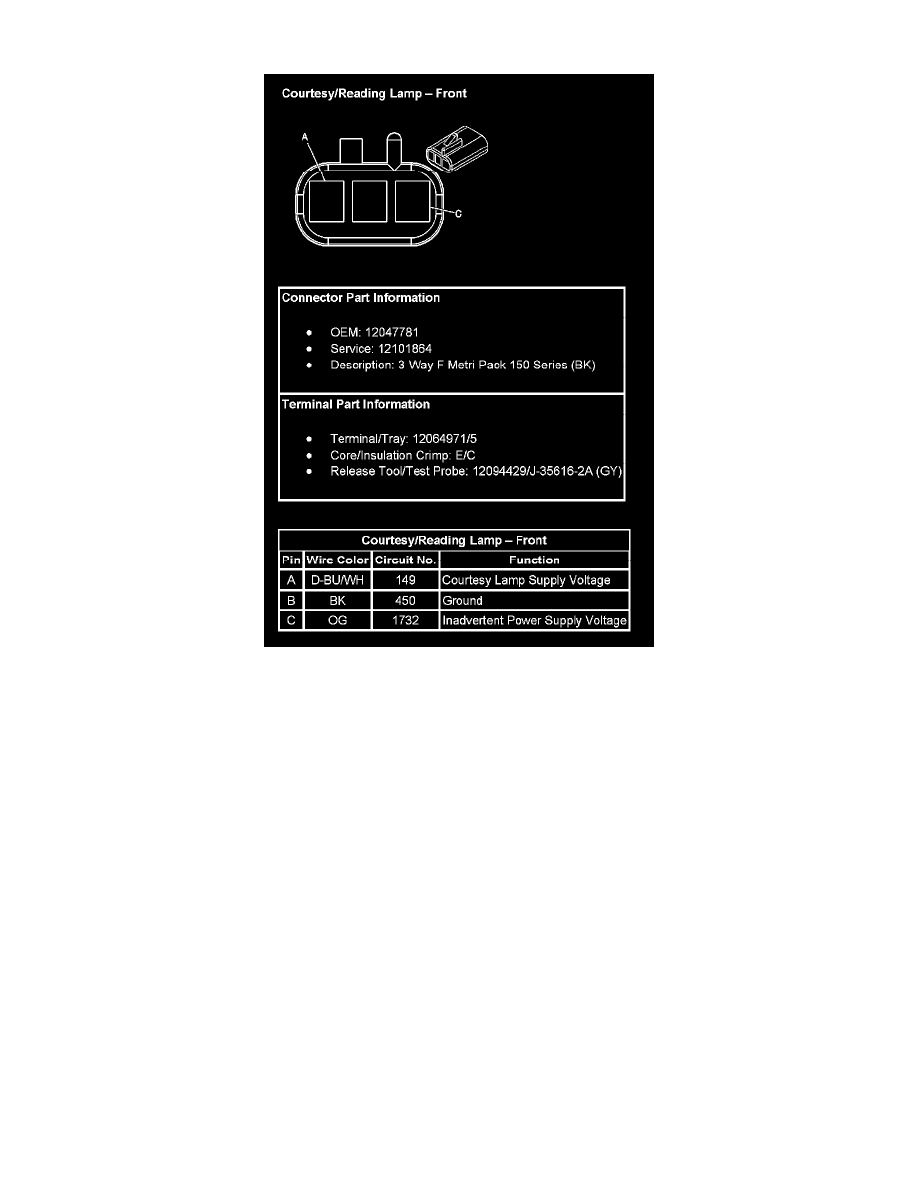

Map Light: Diagrams

Courtesy/Reading Lamp - Front

Pinch or Ctrl + scroll to zoom. Double-tap to reset.
