Map Light: Diagrams

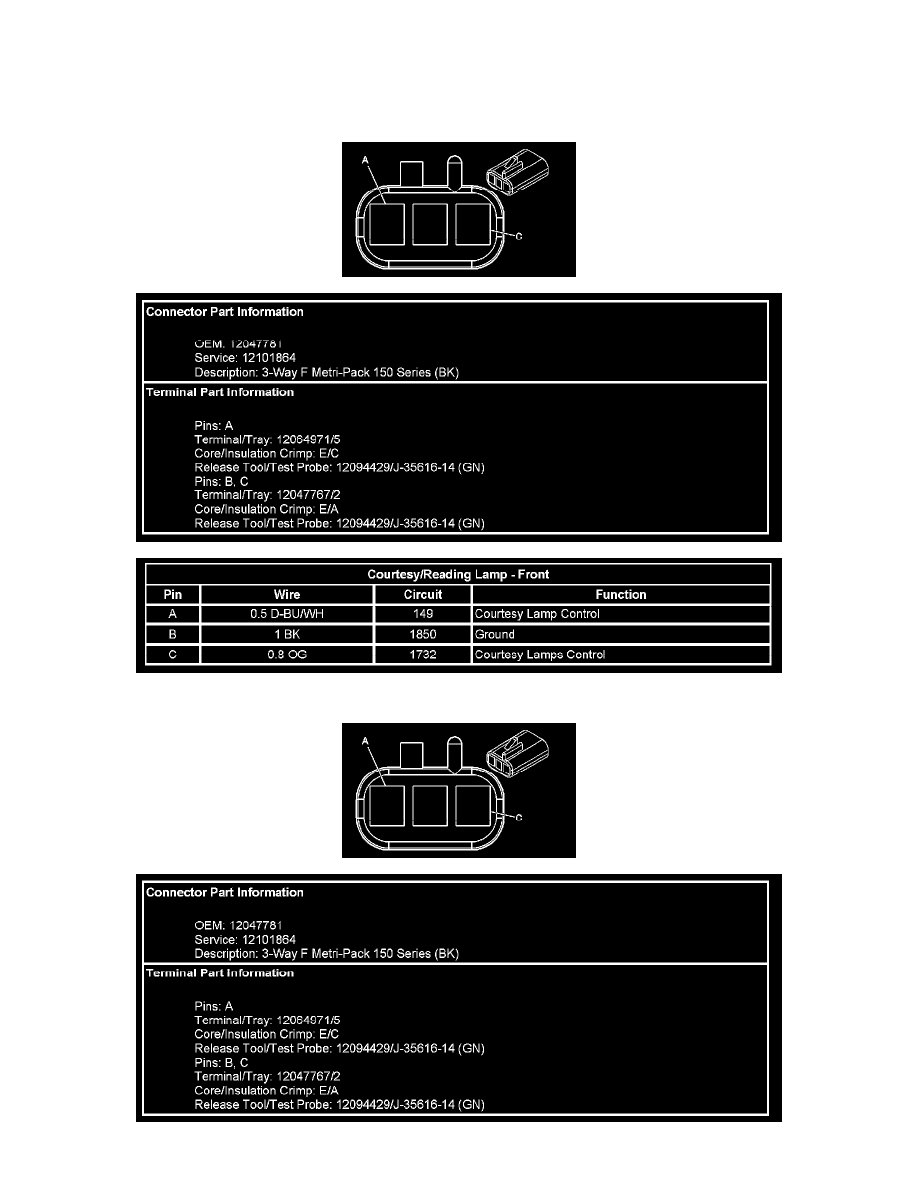

Component Connector End Views

Courtesy/Reading Lamp - Front

Courtesy/Reading Lamp - Middle (Passenger)
