Brake Switch (Cruise Control): Locations
Cruise Control Component Views

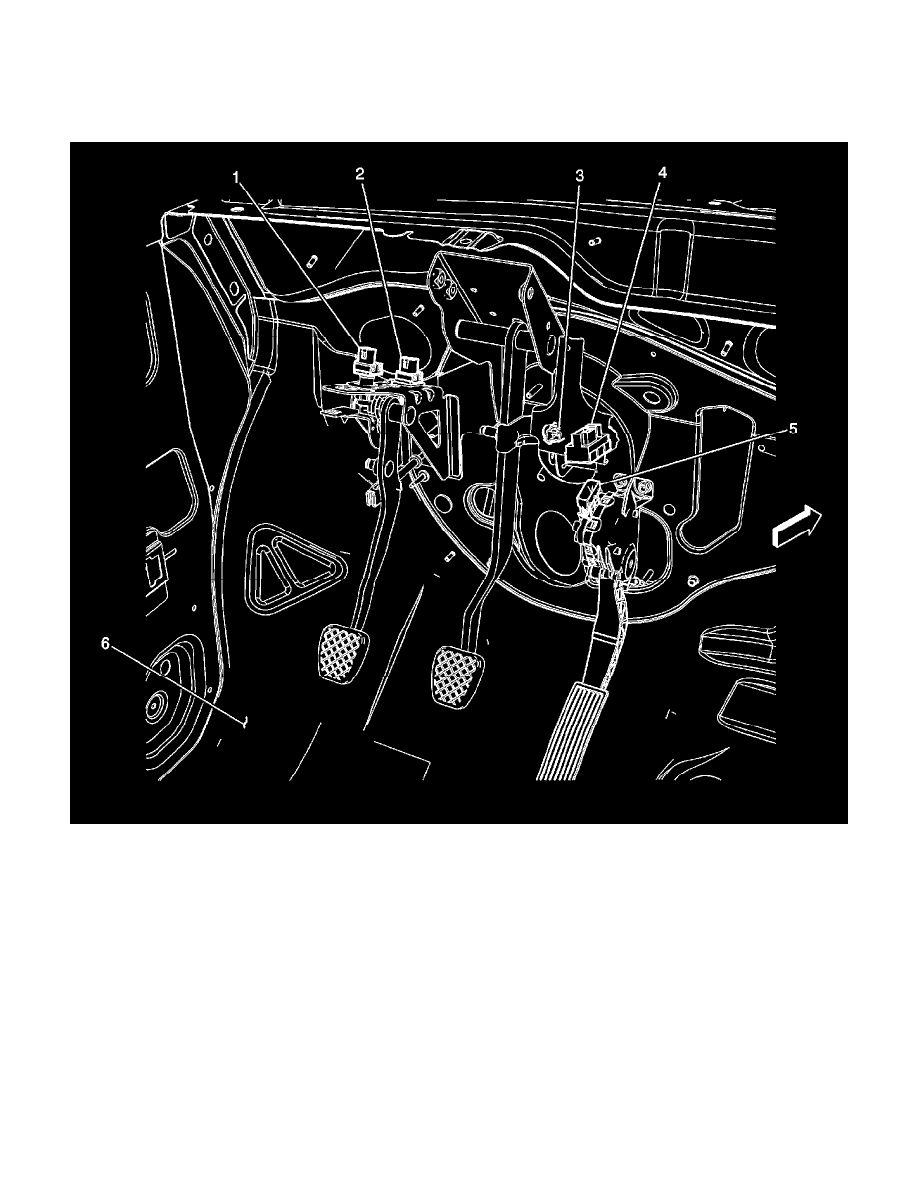

Pedal Assemblies
Pedal Assemblies
1 - Clutch Pedal Position (CPP) Switch (M86)
2 - Clutch Start Switch (M86)
3 - Stop Lamp / Torque Converter Clutch (TCC) Switch / Cruise Release Switch
4 - Stop Lamp Switch
5 - Accelerator Pedal Position (APP) Sensor
6 - Floor Panel
