Door Switch: Locations

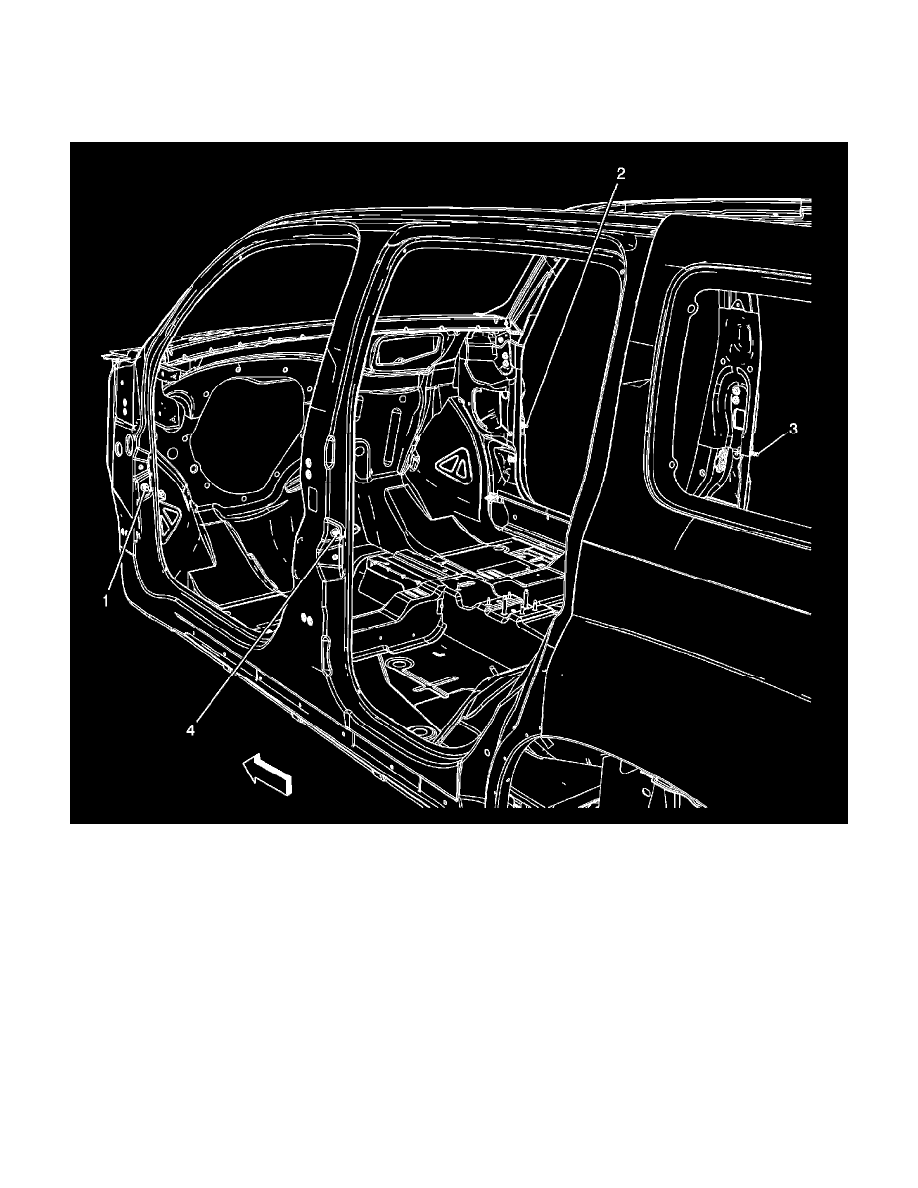

Door Component Views

Door Jamb Switches

1 - Door Jamb Switch - Left Front
2 - Door Jamb Switch - Right Front
3 - Door Jamb Switch - Right Rear (Except Panel Van)
4 - Door Jamb Switch - Left Rear (Except Panel Van)
