Timing Component Alignment Marks: Locations (page 2 of 4)
- Make
- Chevrolet
- Model
- HHR
- Engine
- L4-2.4L
- Year
- 2010
- Section
- Timing Component Alignment Marks
MaintenanceLocations · page 2 of 4

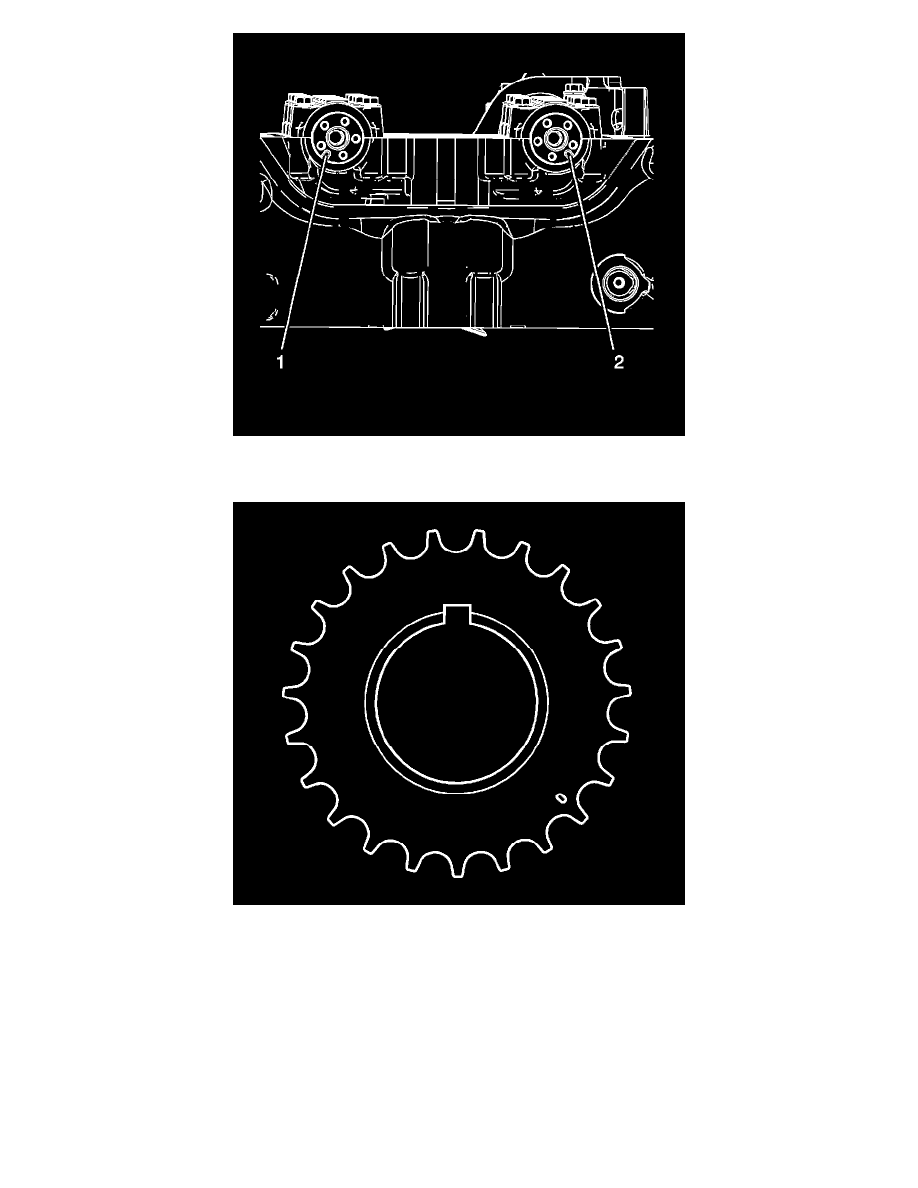

11. On 2.4L engines, ensure the intake camshaft notch is in the 5 o'clock position (2) and the exhaust camshaft notch is in the 7 o'clock position (1).
The number 1 piston should be at TDC, crankshaft key at 12 o'clock.
12. Install the timing chain drive sprocket to the crankshaft with the timing mark in the 5 o'clock position and the front of the sprocket facing out.
