Ignition Coil: Locations
Powertrain Component Views

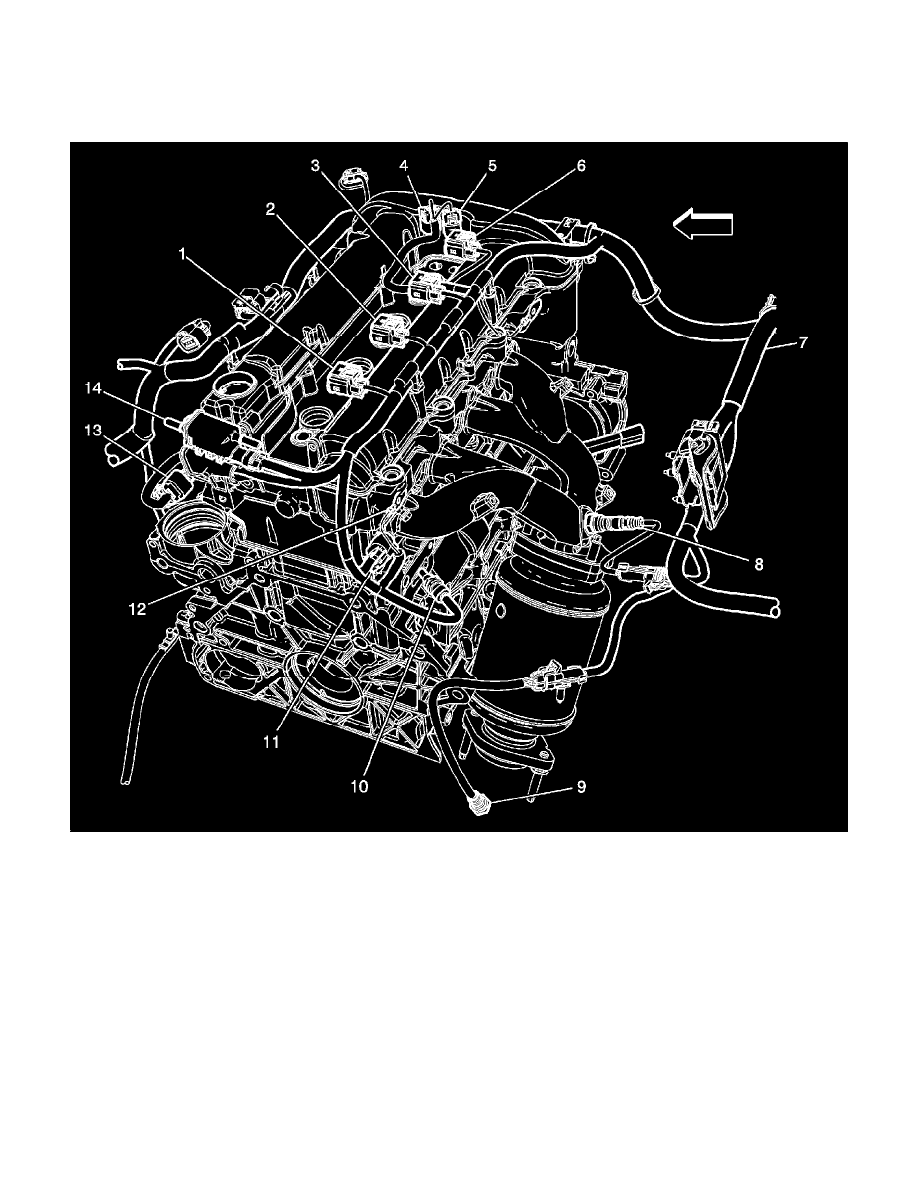

Engine - Rear (LE8/LE9)
1 - Ignition Coil Module 4
2 - Ignition Coil Module 3
3 - Ignition Coil Module 2
4 - Camshaft Position (CMP) Actuator Solenoid-Intake
5 - Camshaft Position (CMP) Actuator Solenoid-Exhaust
6 - Ignition Coil Module 1
7 - Engine Harness
8 - Heated Oxygen Sensor (HO2S) 1
9 - Heated Oxygen Sensor (HO2S) 2
10 - Engine Coolant Temperature (ECT) Sensor
11 - Camshaft Position (CMP) Sensor (Exhaust)
12 - G108
13 - Camshaft Position (CMP) Sensor (Intake)
14 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
