HHR L4-2.4L (2010)
Wiper and Washer Systems
Windshield Washer Pump
Component Information
Diagrams
Page 1

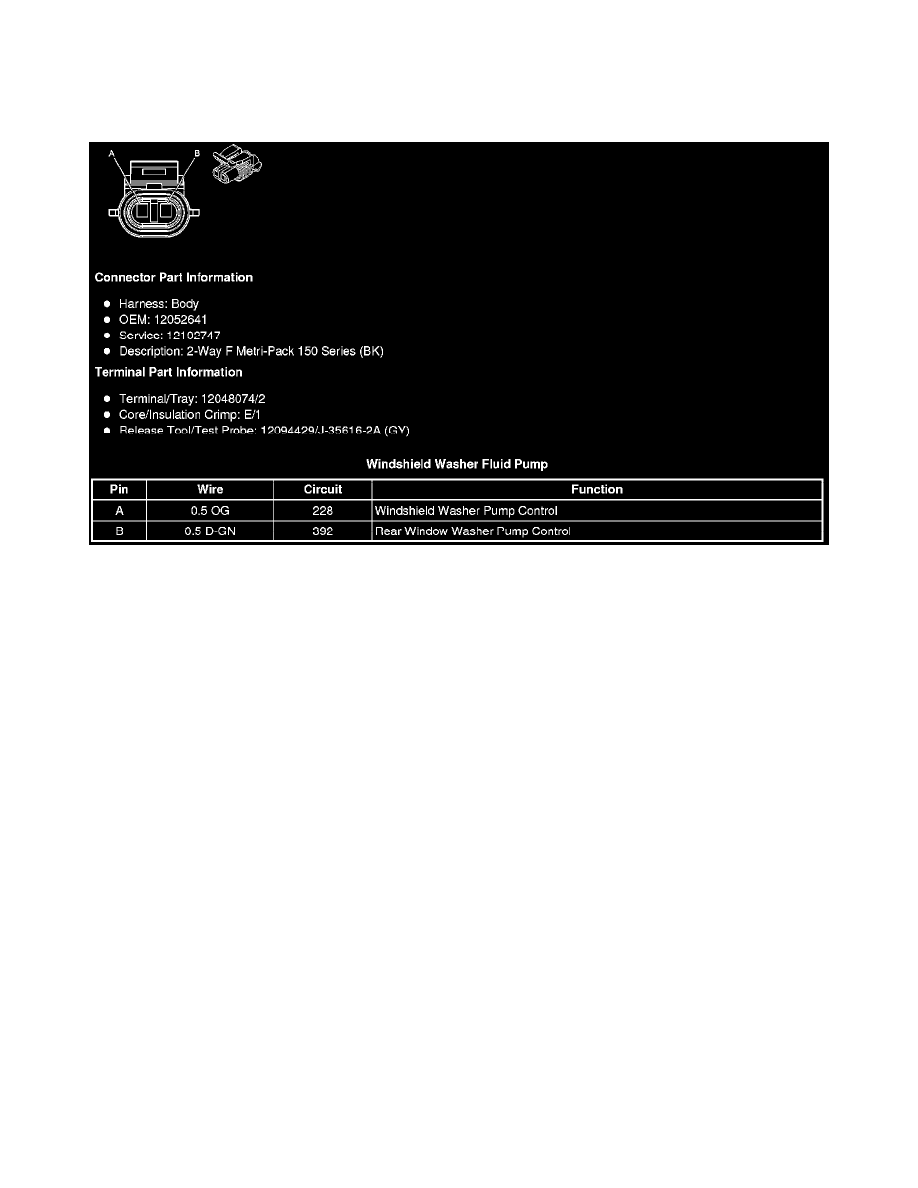

Windshield Washer Pump: Diagrams
Component Connector End Views
Windshield Washer Fluid Pump
Wiper and Washer Systems
Windshield Washer Pump
Component Information
Diagrams
