Branching Point: Diagrams
JX205

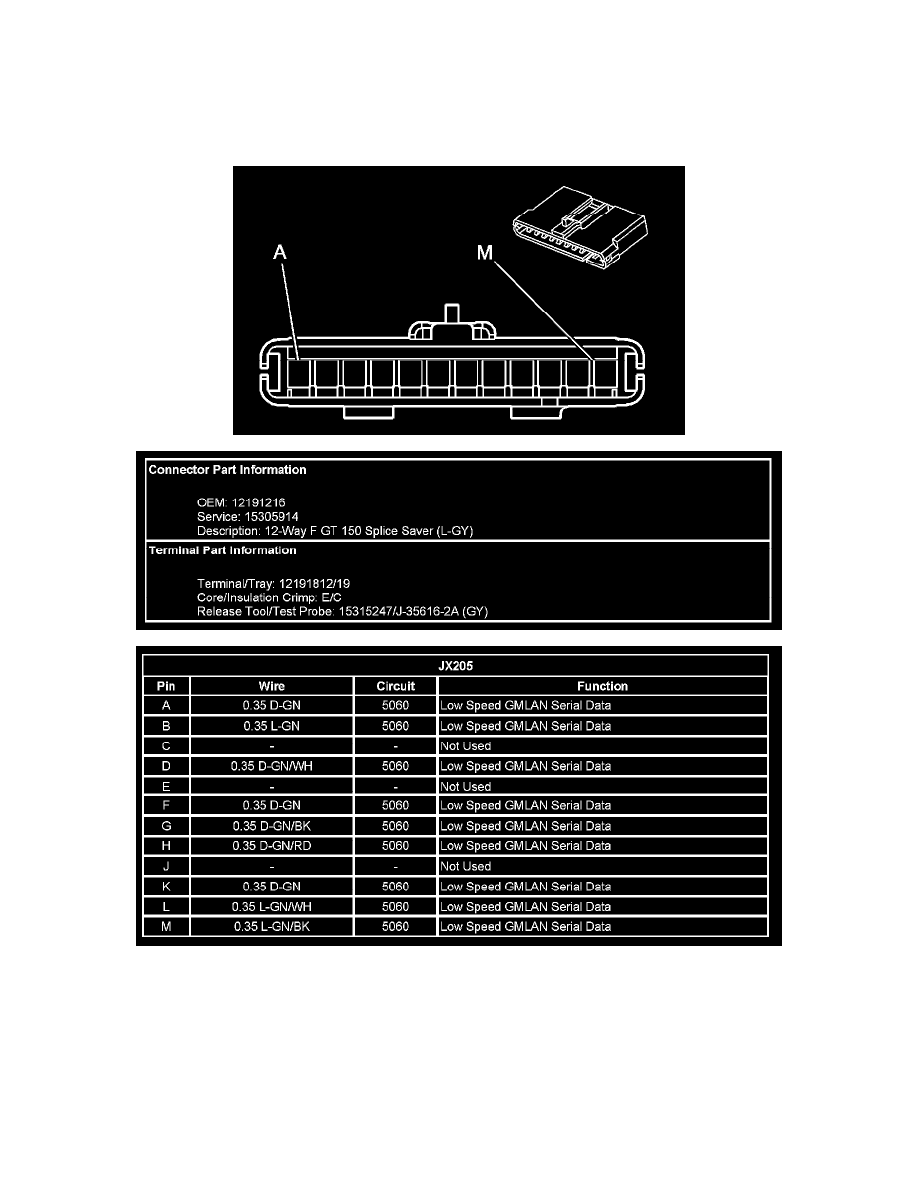

Splice Pack Connector End Views

JX205

Power and Ground Distribution
Branching Point
Component Information
Diagrams
JX205
