Circuit Breaker: Diagrams
- Make
- Chevrolet
- Model
- Impala
- Engine
- V6-3.5L
- Year
- 2008
- Section
- Circuit Breaker › Diagrams
Power and Ground DistributionDiagrams · page 1 of 2
Circuit Breaker: Diagrams

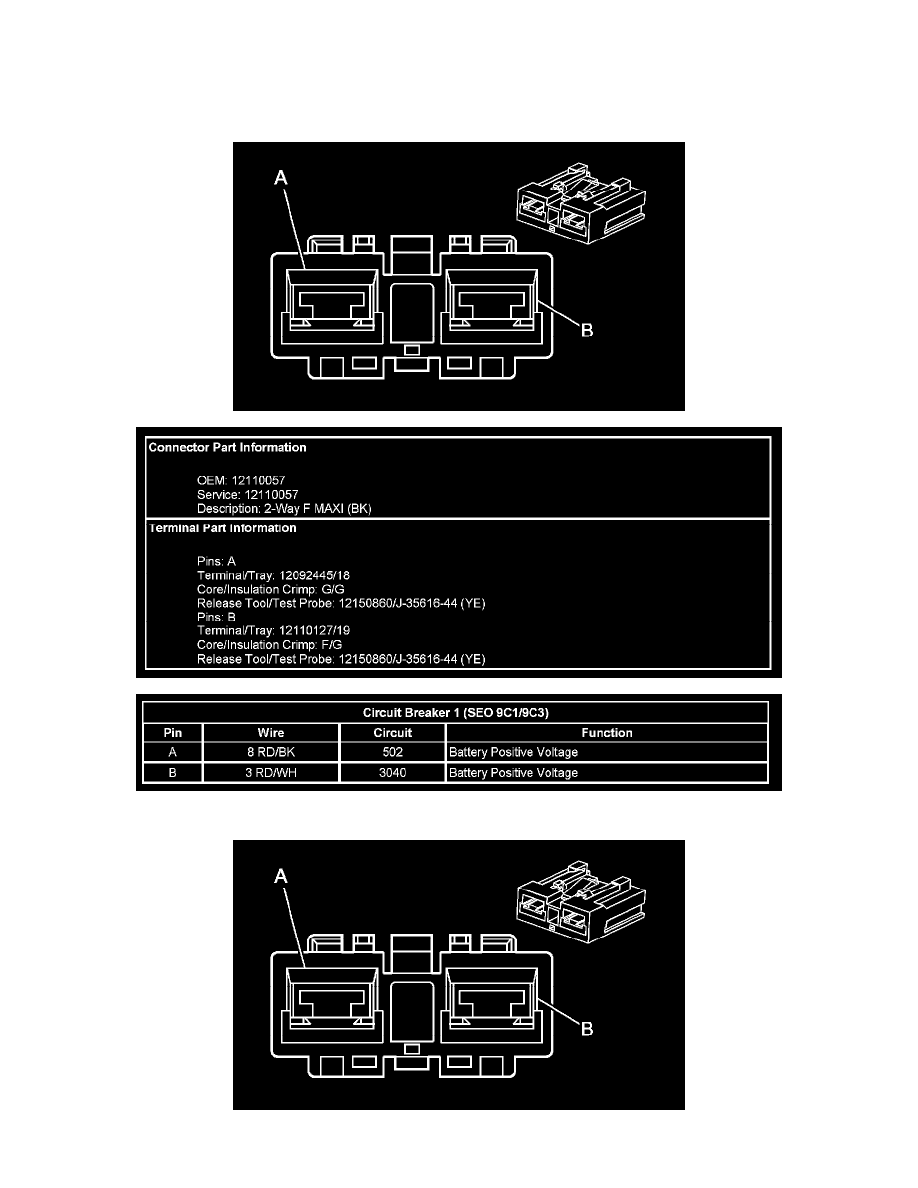

Component Connector End Views
Circuit Breaker 1 (SEO 9C1/9C3)
Circuit Breaker 2 (SEO 9C1/9C3)
Pinch or Ctrl + scroll to zoom. Double-tap to reset.
