Branching Point (SP205): Diagrams
- Make
- Chevrolet
- Model
- Impala
- Engine
- V6-3.9L
- Year
- 2007
- Section
- Branching Point › Diagrams › SP205
Power and Ground DistributionSP205 · page 1 of 3
Branching Point: Diagrams
SP205

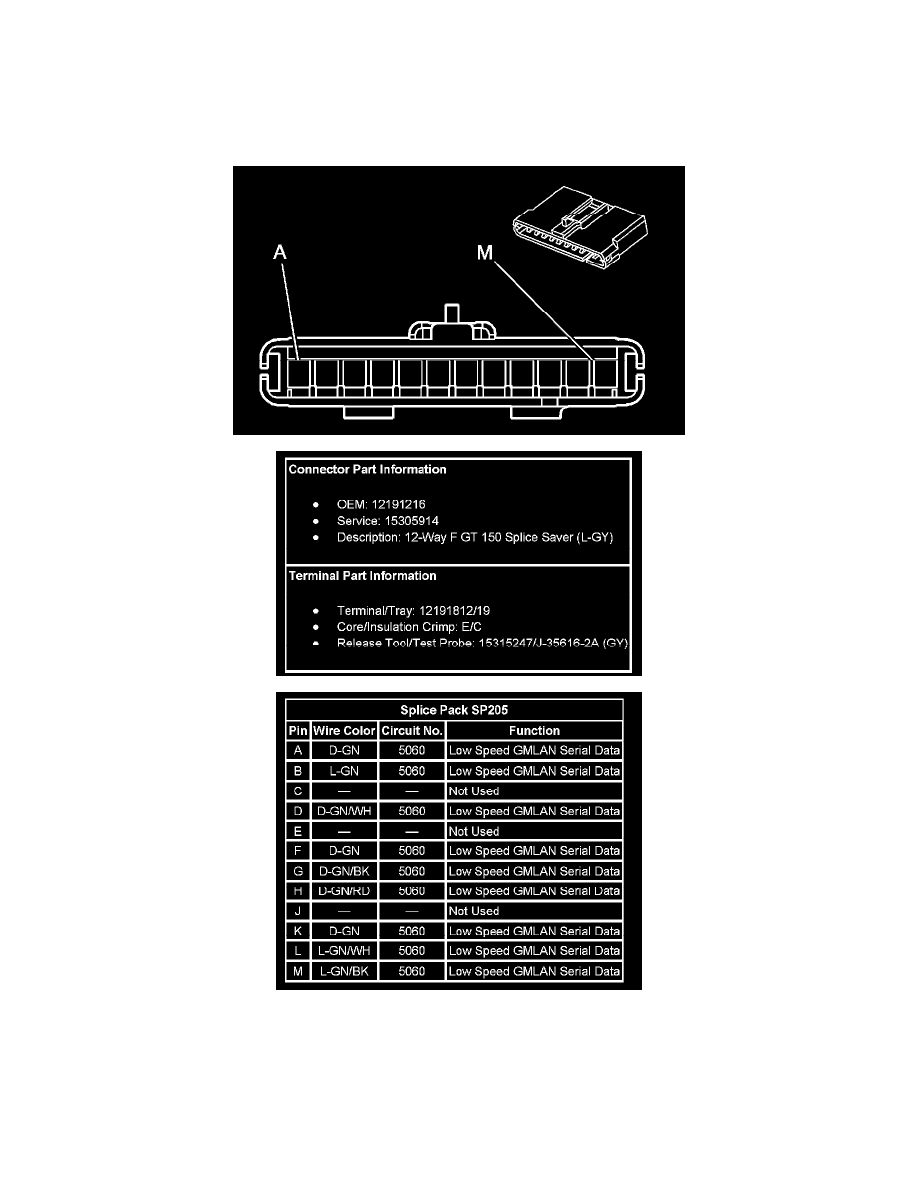

Splice Pack Connector End Views
Splice Pack SP205
Splice Pack SP205 (Pin A To M)
