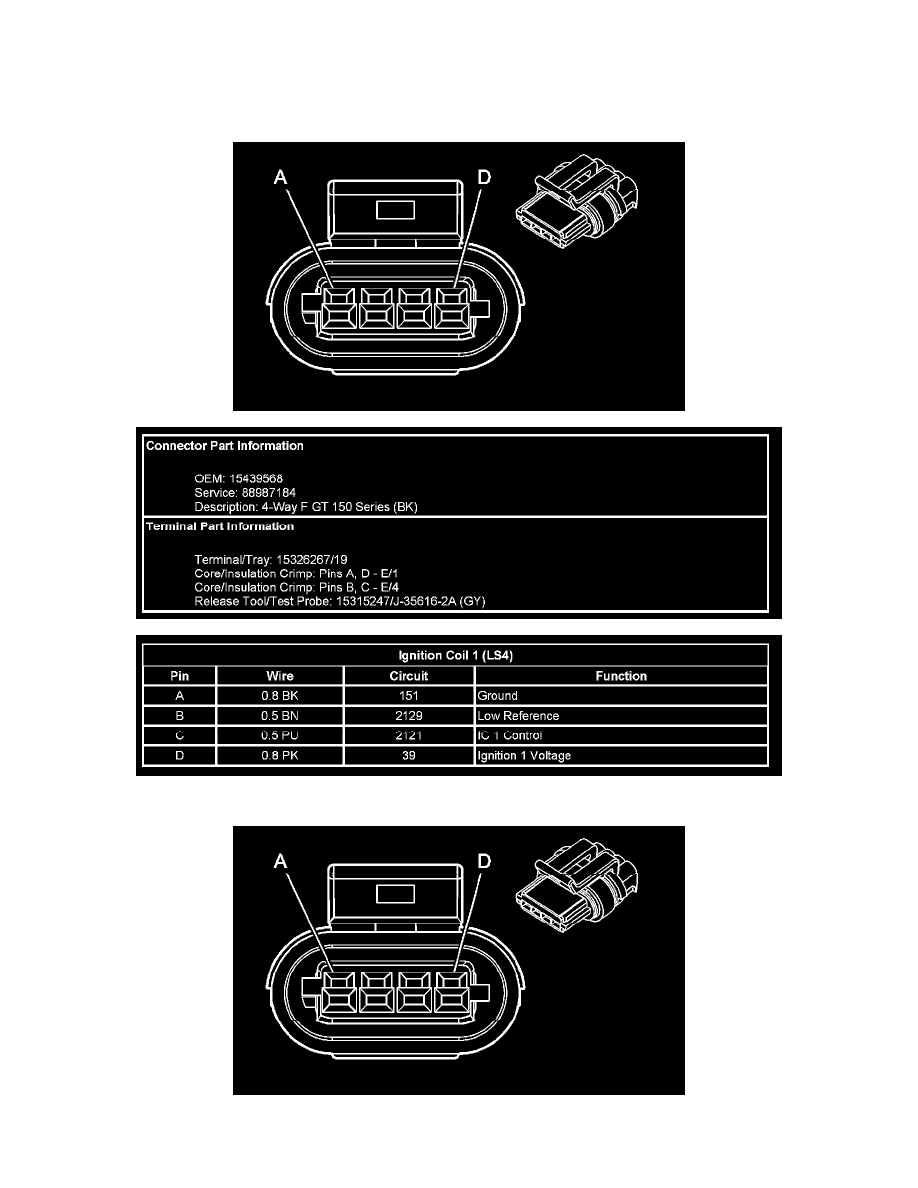

Ignition Coil: Diagrams

Component Connector End Views - Continued

Ignition Coil 1 (LS4)

Ignition Coil 2 (LS4)
