Knock Sensor: Locations

Make

Chevrolet

Model

Impala

Engine

V8-5.3L

Year

2008

Section

Ignition System › Knock Sensor › Locations

Powertrain ManagementLocations · page 1 of 2

Knock Sensor: Locations

Powertrain Component Views

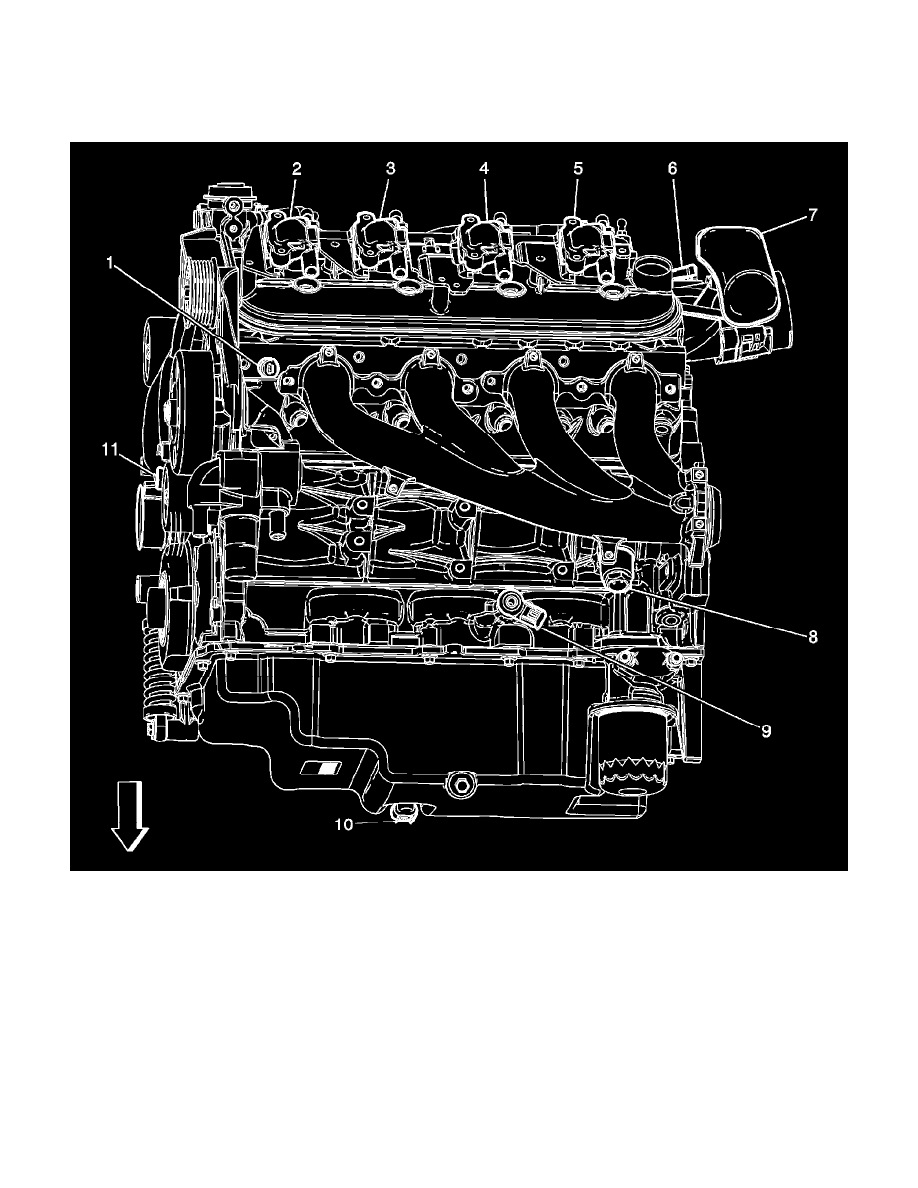

Front of Engine (LS4)

Front Of Engine

1 - Engine Coolant Temperature (ECT) Sensor
2 - Ignition Coil 1
3 - Ignition Coil 3
4 - Ignition Coil 5
5 - Ignition Coil 7
6 - Manifold Absolute Pressure (MAP) Sensor
7 - Throttle Body
8 - Engine Coolant Heater
9 - Knock Sensor (KS) 1
10 - Engine Oil Level Switch
11 - Camshaft Position (CMP) Sensor

Rear of Engine (LS4)
