Windshield Washer Relay: Locations
WINDSHIELD WASHER RELAY

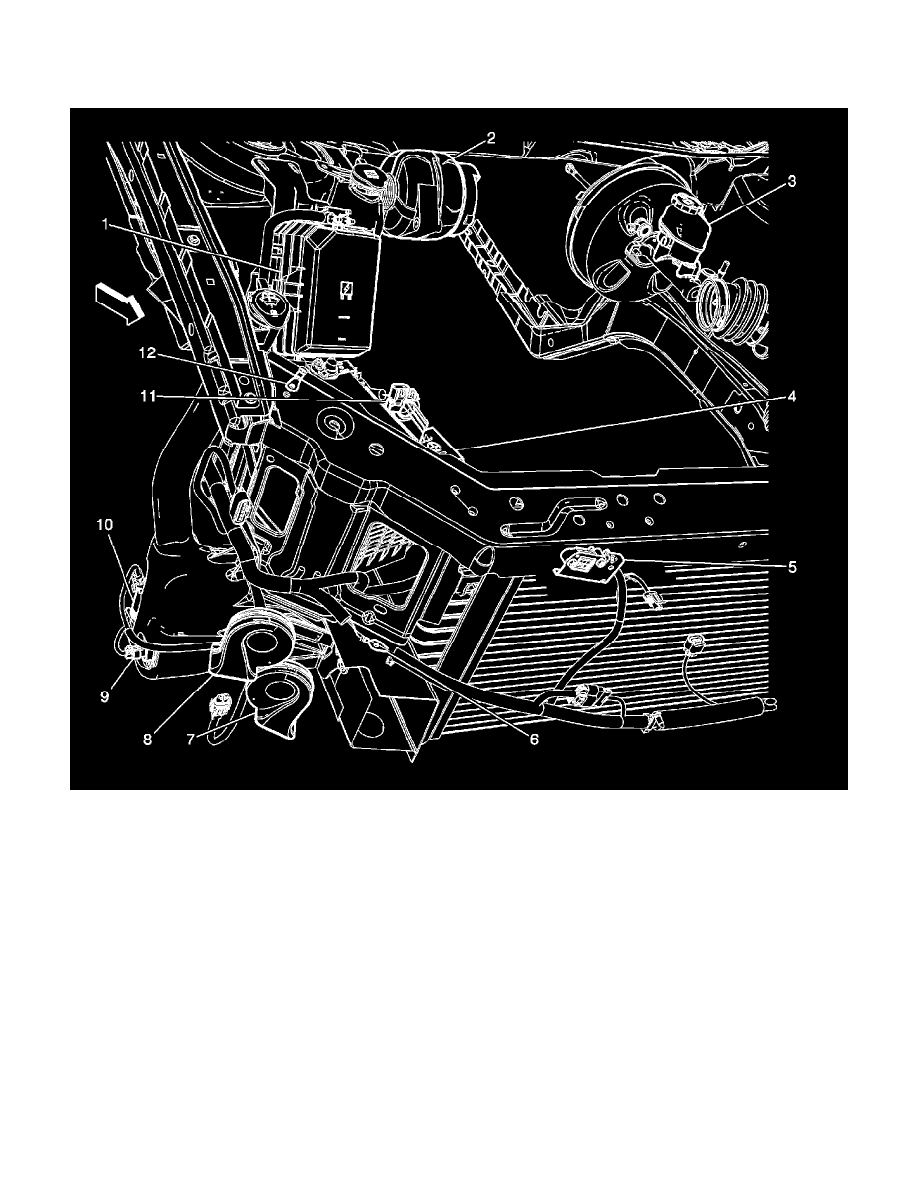

The Windshield Washer PCB relay is located in the Underhood Fuse Block (1). The Underhood Fuse Block (1) is located on the right side of the
engine compartment, mounted to the strut tower.
IMPORTANT: This relay is a Printed Circuit Board (PCB) relay, and is only repaired by replacing the Underhood Fuse Block.
