Malibu L4-2.2L (2007)
Control Module HVAC: Locations
HVAC Component Views

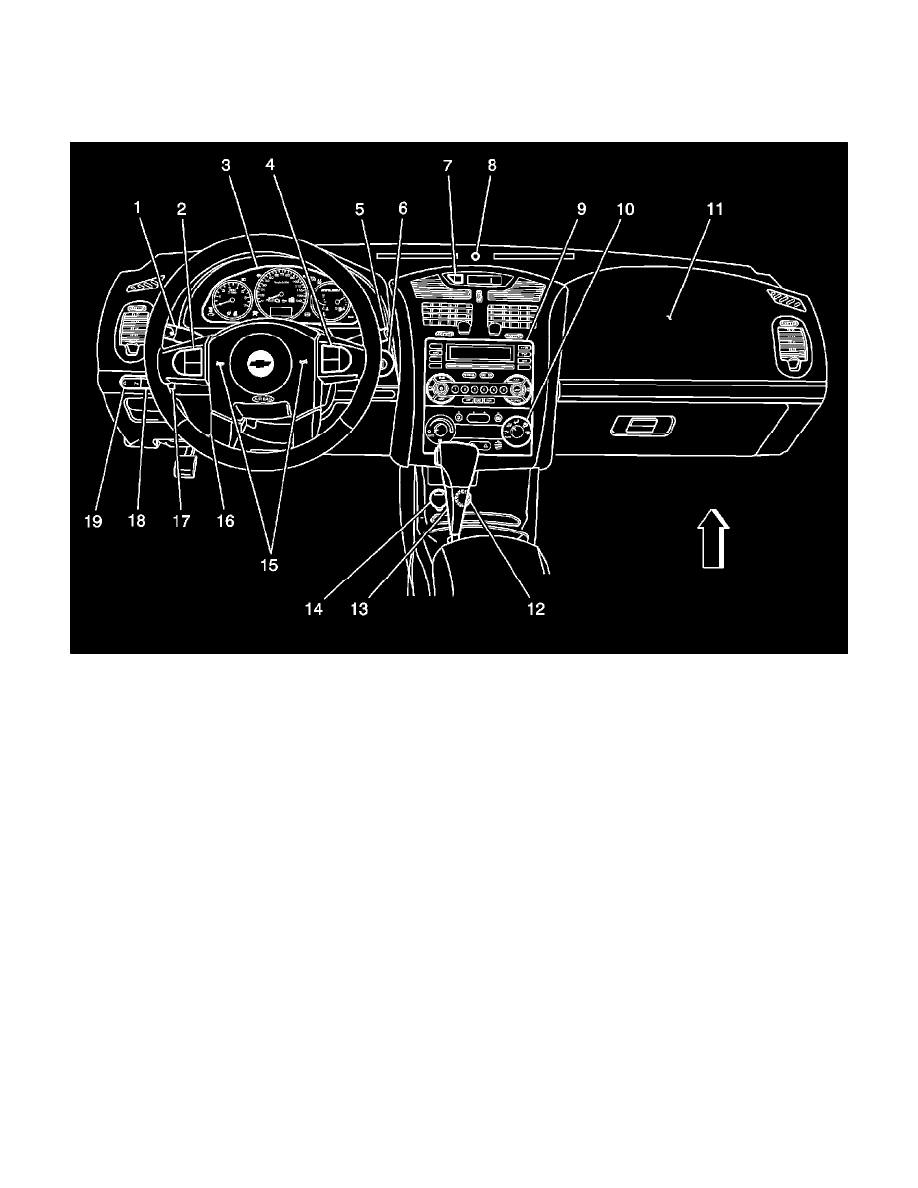

Instrument Panel
1 - Turn Signal/Multifunction Switch
2 - Steering Wheel Controls - Left
3 - Instrument Panel Cluster (IPC)
4 - Steering Wheel Controls - Right
5 - Windshield Wiper/Washer Switch
6 - Ignition Switch
7 - Hazard Switch
8 - Ambient Light Sensor (C60), Sunload Sensor (C68)
9 - Radio
10 - HVAC Control Module
11 - Inflatable Restraint I/P Module
12 - Traction Control Switch (NW7/NW9), Auxiliary Power Outlet - Front (w/o NW7/NW9)
13 - Transmission Shifter
14 - Cigar Lighter
15 - Horn Buttons/Inflatable Restraint Steering Wheel Module
16 - Data Link Connector (DLC)
17 - Fog Lamp Switch (T96)
18 - Dimmer Switch
19 - Adjustable Pedals Position Switch (JF4)
Above Right Front Footwell
