Malibu L4-2.4L (2010)
Fuse Block: Locations
Front of Vehicle/Engine Compartment Component Views

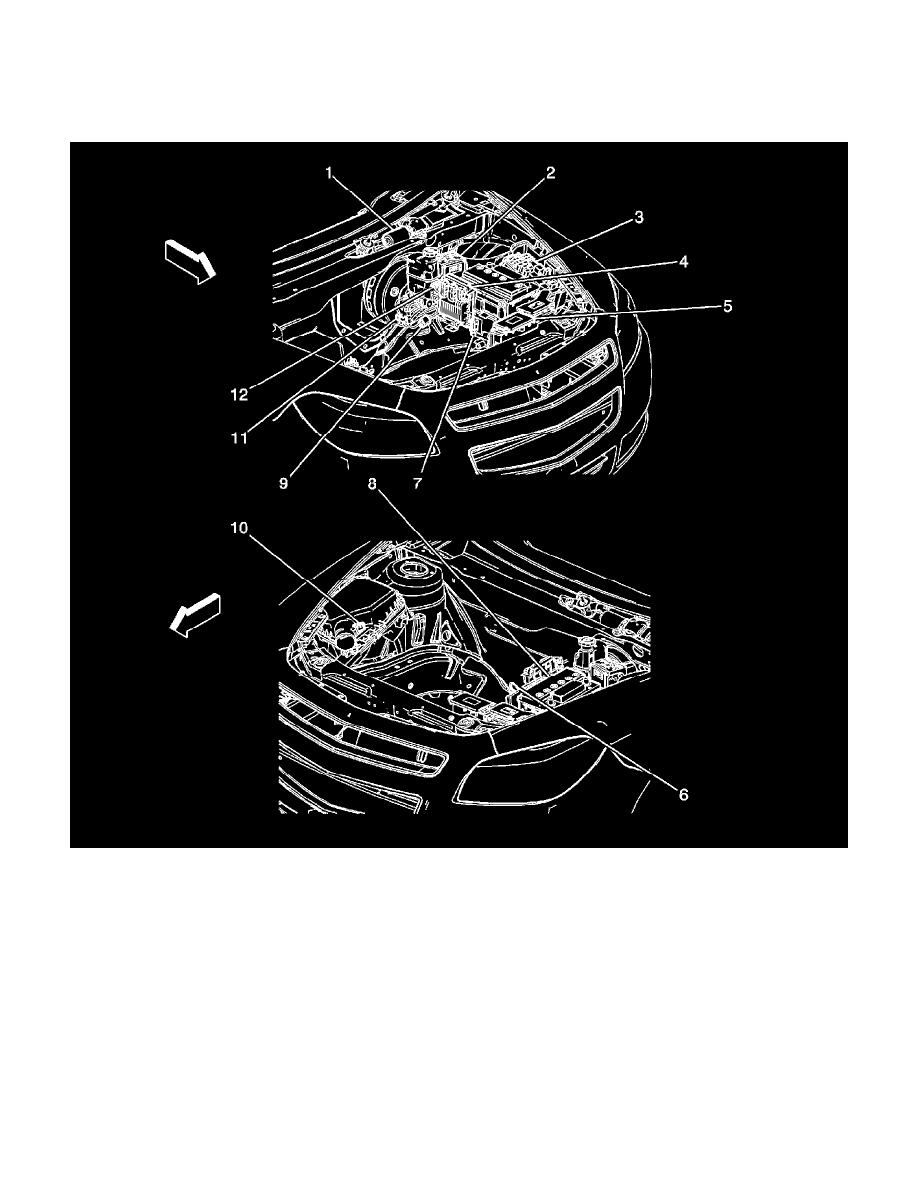

Engine Compartment Components (LAT or HP7)
1 - Windshield Wiper Motor
2 - Electronic Brake Control Module (EBCM)
3 - Fuse Block - Underhood
4 - Engine Control Module (ECM)
5 - Starter Generator Control Module (SGCM)
6 - Battery Current Sensor
7 - Transmission Control Module (TCM) (ME7)
8 - Battery
9 - Brake Master Cylinder Pressure Sensor
10 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
11 - Brake Booster Vacuum Sensor
12 - Brake Fluid Level Switch
Engine Compartment Components (without LAT or HP7)
