Malibu V6-3.6L (2010)
Starter Solenoid: Locations
Powertrain Component Views

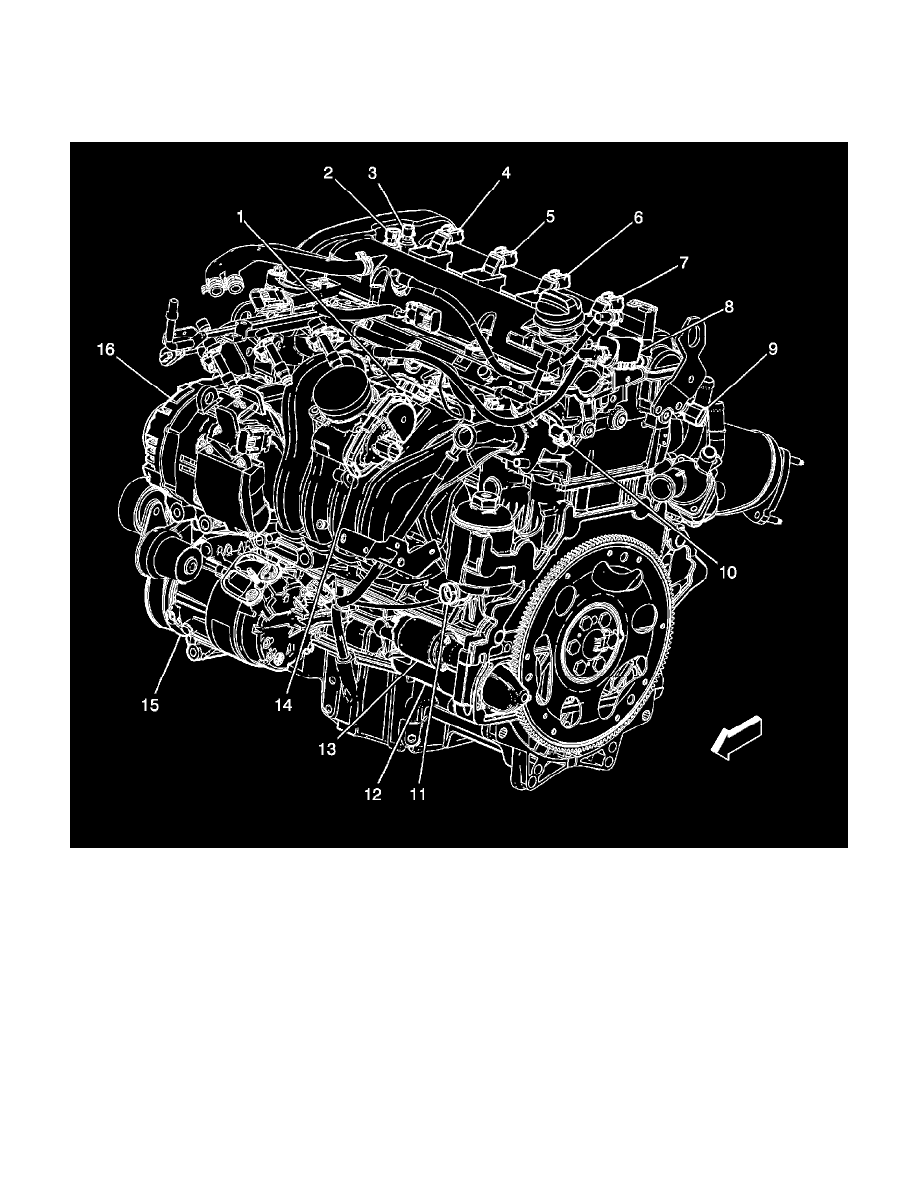

Front and Left Side of the Engine Components (LAT or LE5 or LE9)
1 - Manifold Absolute Pressure (MAP) Sensor
2 - Camshaft Position (CMP) Actuator Solenoid Valve - Intake
3 - Camshaft Position (CMP) Actuator Solenoid Valve - Exhaust
4 - Ignition Coil 1
5 - Ignition Coil 2
6 - Ignition Coil 3
7 - Ignition Coil 4
8 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
9 - Camshaft Position (CMP) Sensor - Exhaust
10 - Camshaft Position (CMP) Sensor - Intake
11 - Engine Oil Pressure (EOP) Switch
12 - Starter Motor
13 - Starter Solenoid (part of Starter Motor)
14 - Throttle Body
15 - A/C Compressor Clutch
16 - Generator (LE5 or LE9) or Starter Generator (KY1)
