Starter Solenoid: Locations

Make

Chevrolet

Model

Malibu

Engine

V6-3.9L

Year

2007

Section

Starting System › Starter Solenoid › Locations

Starting and ChargingLocations · page 1 of 2

Starter Solenoid: Locations

Engine Electrical Component Views

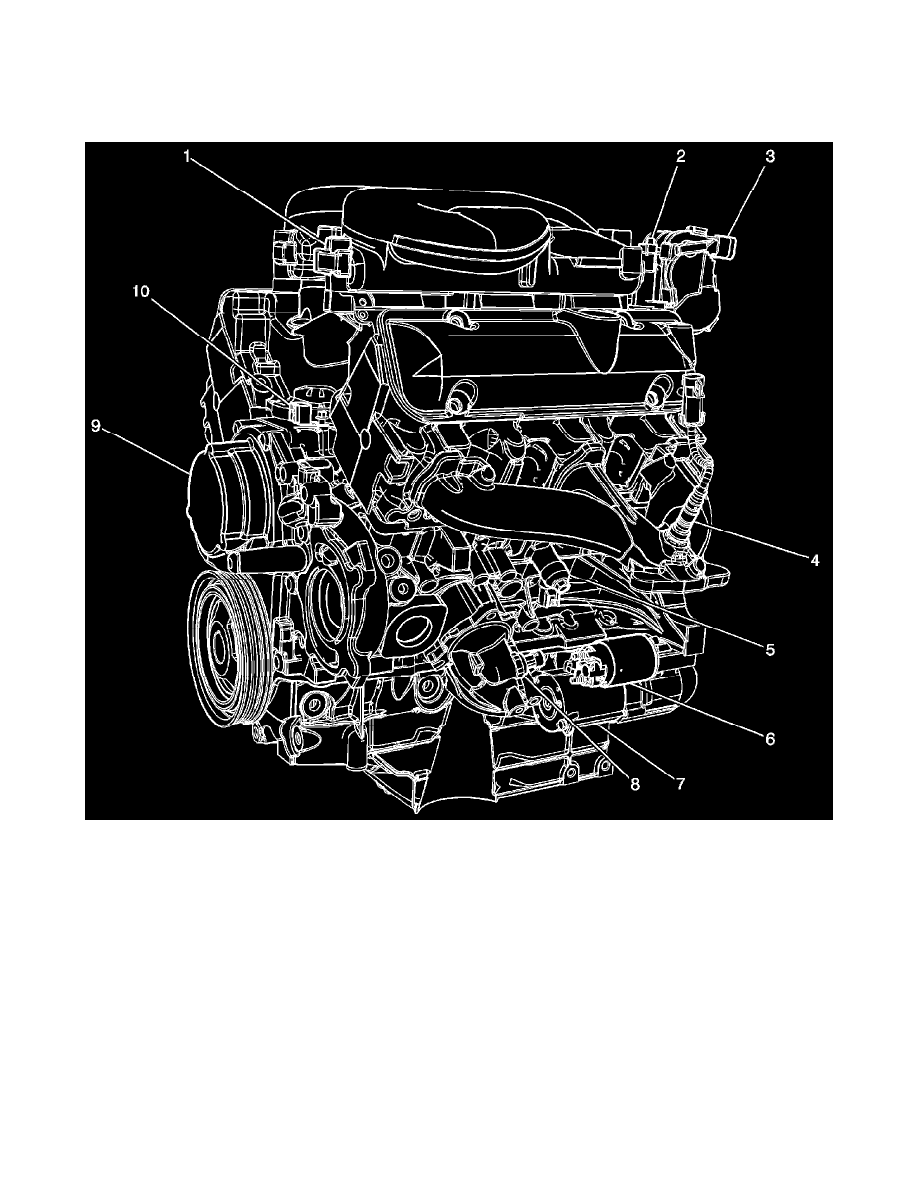

Front of the Engine (LZ9)

1 - Intake Manifold Tuning (IMT) Valve Solenoid
2 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
3 - Throttle Actuator Control (TAC) Module
4 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
5 - Knock Sensor (KS) 2
6 - Starter Solenoid
7 - Starter
8 - Engine Oil Pressure (EOP) Sensor
9 - Camshaft Position (CMP) Actuator Solenoid
10 - Camshaft Position (CMP) Sensor

Starter
