Chevrolet Monte Carlo V8-5.3L (2007)17 · Lighting and Horns
17 · Electrical

Spot Lamp: Diagrams

Make
Chevrolet
Model
Monte Carlo
Engine
V8-5.3L
Year
2007
Section
Spot Lamp › Diagrams
Lighting and HornsDiagrams
background image

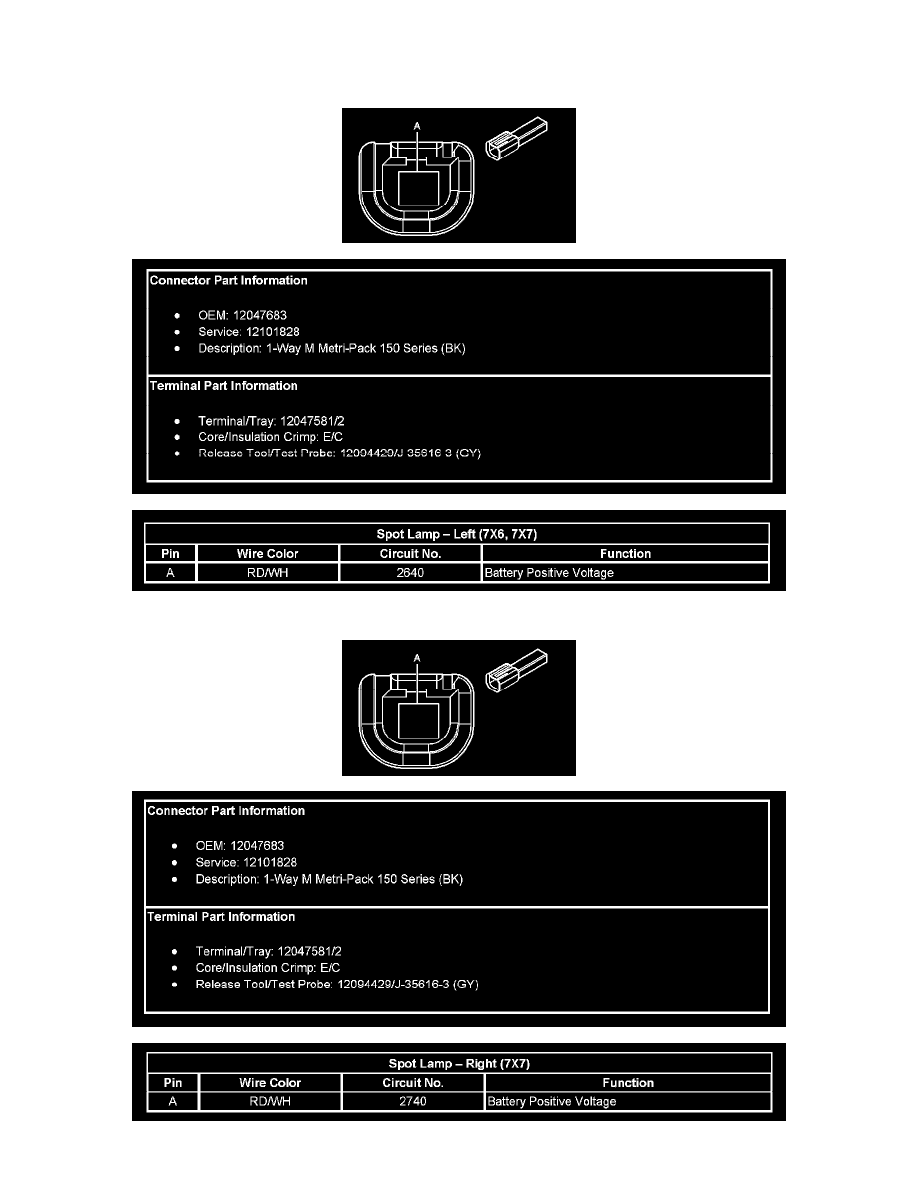

Spot Lamp: Diagrams

Spot Lamp - Left (7X6, 7X7)

Spot Lamp - Right (7X7)
