Timing Component Alignment Marks: Locations
- Make
- Chevrolet
- Model
- Silverado 1500 4WD
- Engine
- V8-5.3L
- Year
- 2007
- Section
- Timing Component Alignment Marks › Locations
MaintenanceLocations
Timing Component Alignment Marks: Locations
*

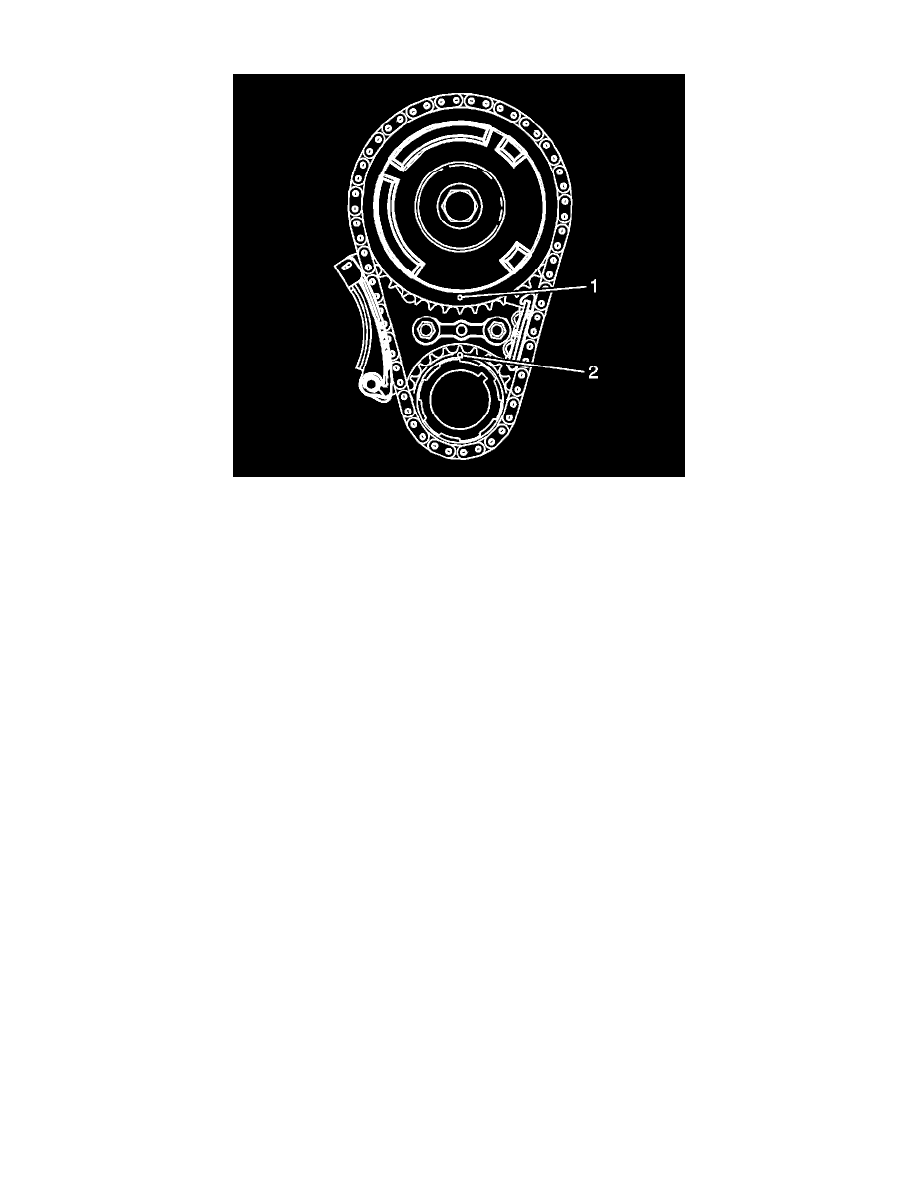

Inspect the sprockets for proper alignment. The mark on the camshaft sprocket (1) should be located in the 6 o'clock position and the mark on the
crankshaft sprocket (2) should be located in the 12 o'clock position.
