Chevrolet Suburban 2WD V8-5.3L (2008)17 · Lighting and Horns
17 · Electrical

Map Light: Diagrams

Make
Chevrolet
Model
Suburban 2WD
Engine
V8-5.3L
Year
2008
Section
Map Light › Diagrams
Lighting and HornsDiagrams · page 1 of 2
background image

Map Light: Diagrams

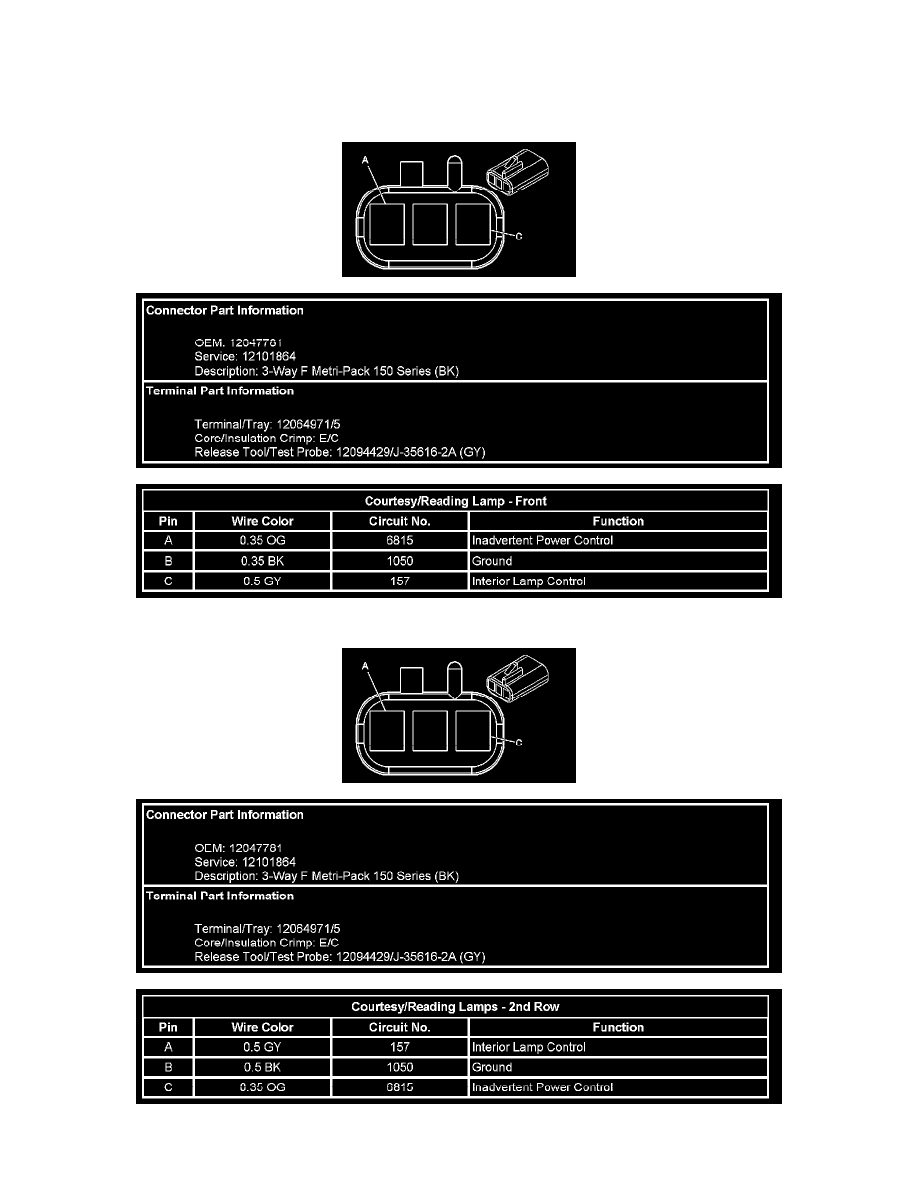

Component Connector End Views

Courtesy/Reading Lamp - Front

Courtesy/Reading Lamps - 2nd Row

Courtesy/Reading Lamps - 3rd Row (E52)
