Suburban 4WD V8-5.3L (2008)
Dimmer Switch: Locations
Instrument Panel/Center Console Component Views
Front of the I/P Components (X88/Z88)

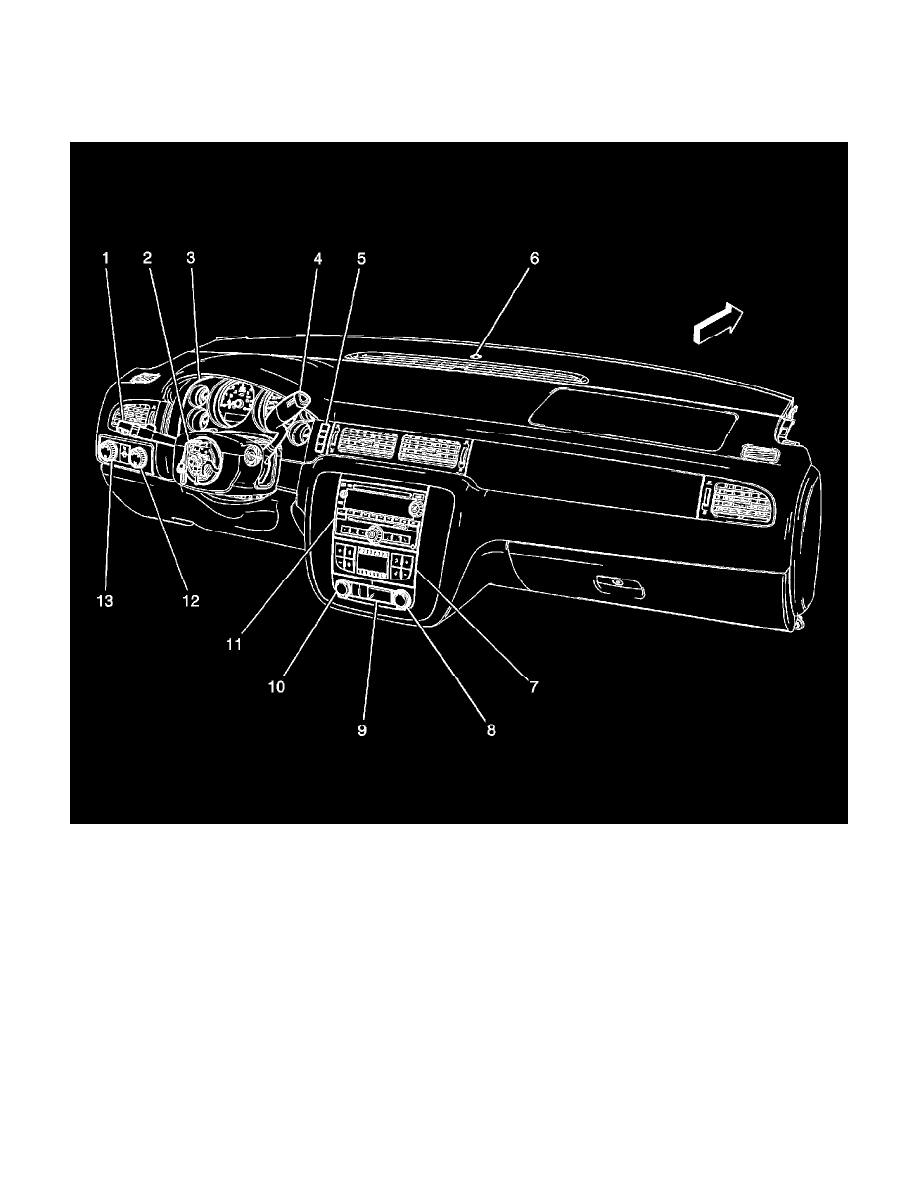

Front of the I/P (Except Z75)
1 - Turn Signal Multifunction Switch
2 - Inflatable Restraint Steering Wheel Module Coil
3 - Instrument Panel Cluster (IPC)
4 - Tow/Haul Switch
5 - Driver Information Center (DIC) Switch
6 - Ambient Light/Sunload Sensor Assembly (CJ2) or Ambient Light Sensor (CJ3)
7 - HVAC Control Module
8 - Auxiliary Power Outlet - Front 2
9 - I/P Multifunction Switch Assembly
10 - Auxiliary Power Outlet - Front 1
11 - Radio
12 - Transfer Case Shift Control Switch (NP8)
13 - Headlamp and Panel Dimmer Switch
Front of the I/P Components (Z75)
