Ignition Coil: Diagrams
- Make
- Chevrolet
- Model
- Suburban 4WD
- Engine
- V8-5.3L
- Year
- 2008
- Section
- Ignition System › Ignition Coil › Diagrams
Powertrain ManagementDiagrams · page 1 of 9
Ignition Coil: Diagrams

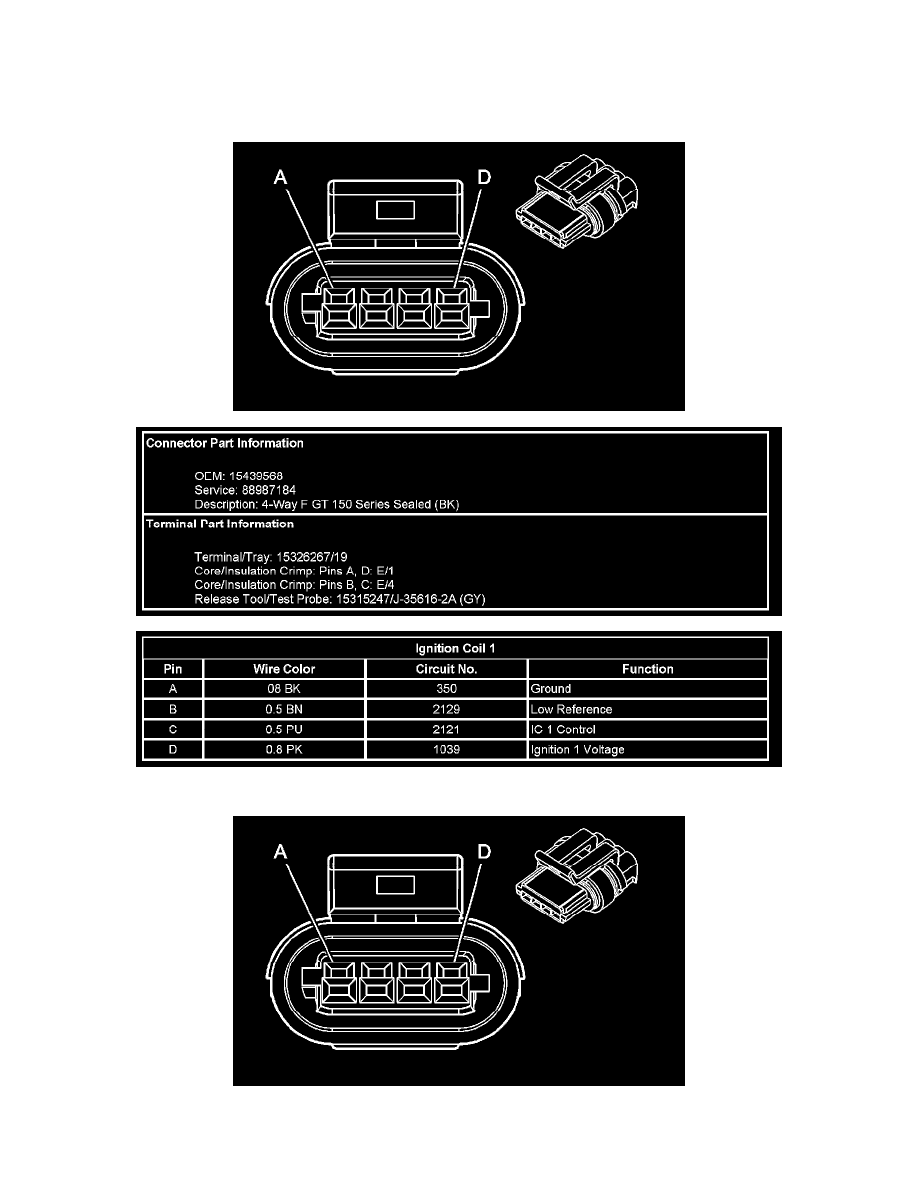

Component Connector End Views - Continued
Ignition Coil 1
Ignition Coil 2
