Map Light|Diagrams|Page 25485 > < Diagram Information and Instructions|Page 25481

Tahoe 2WD V8-4.8L (2008)

Page 1
background image

Map Light: Diagrams

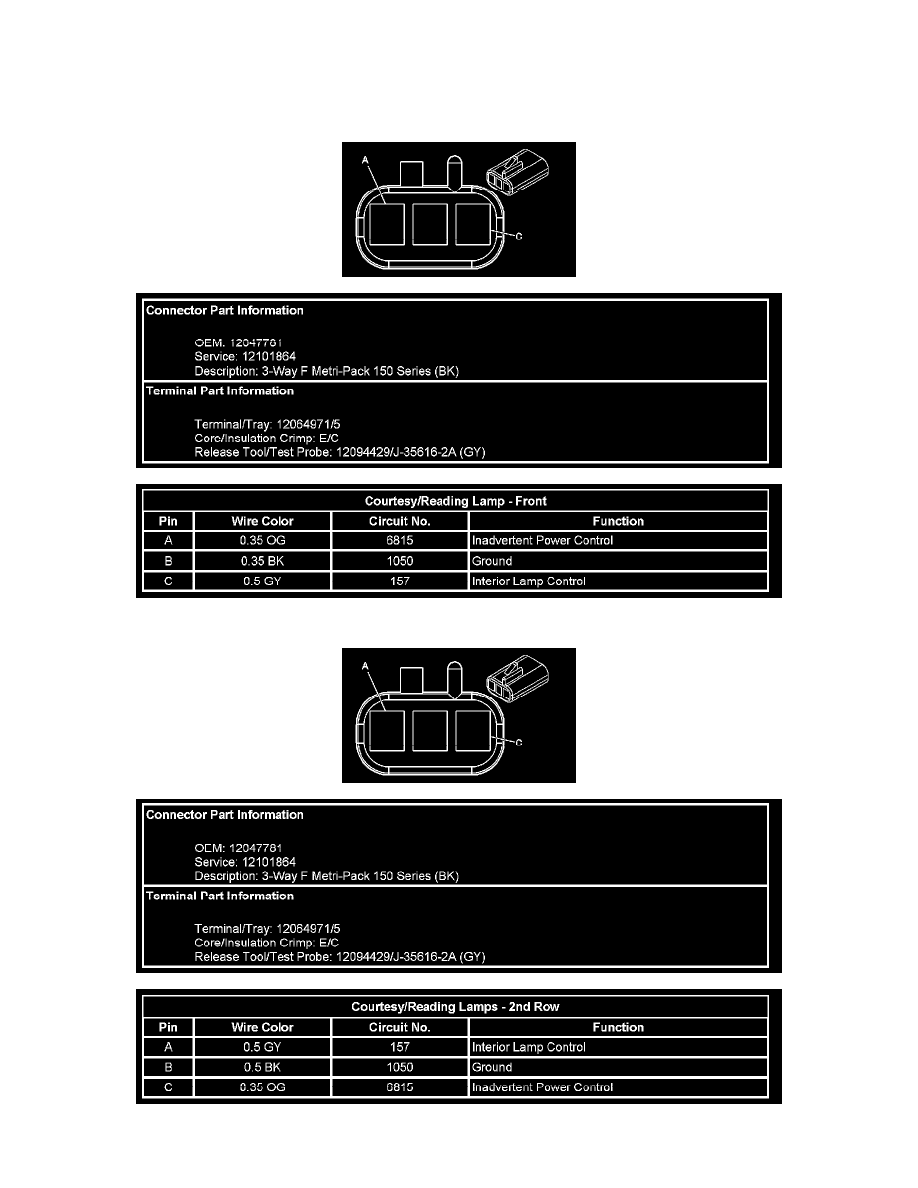

Component Connector End Views

Courtesy/Reading Lamp - Front

Courtesy/Reading Lamps - 2nd Row

Courtesy/Reading Lamps - 3rd Row (E52)

Map Light|Diagrams|Page 25485 > < Diagram Information and Instructions|Page 25481
