Tahoe 4WD V8-6.2L (2009)
Courtesy Lamp: Diagrams

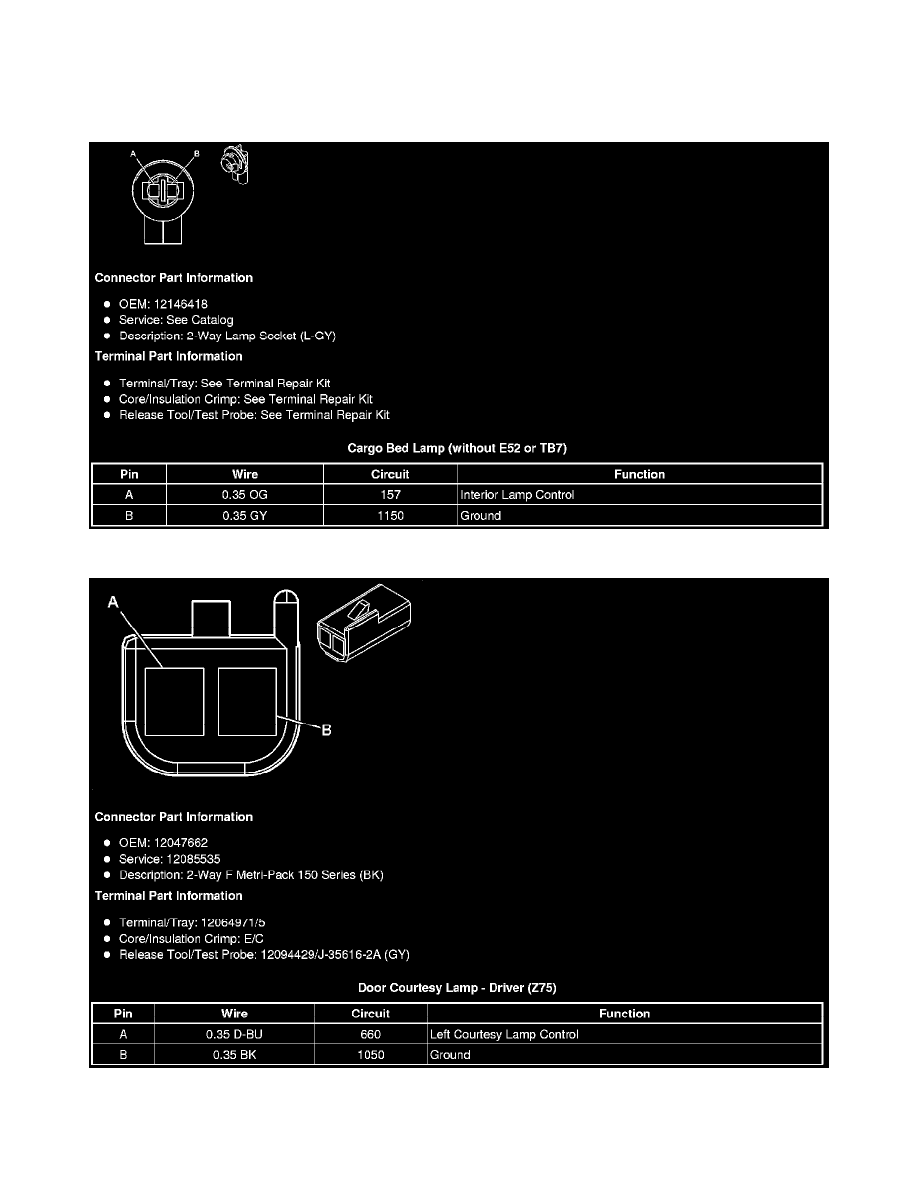

Component Connector End Views
Cargo Bed Lamp (without E52 or TB7)
Door Courtesy Lamp - Driver (Z75)
Door Courtesy Lamp - Passenger (Z75)
