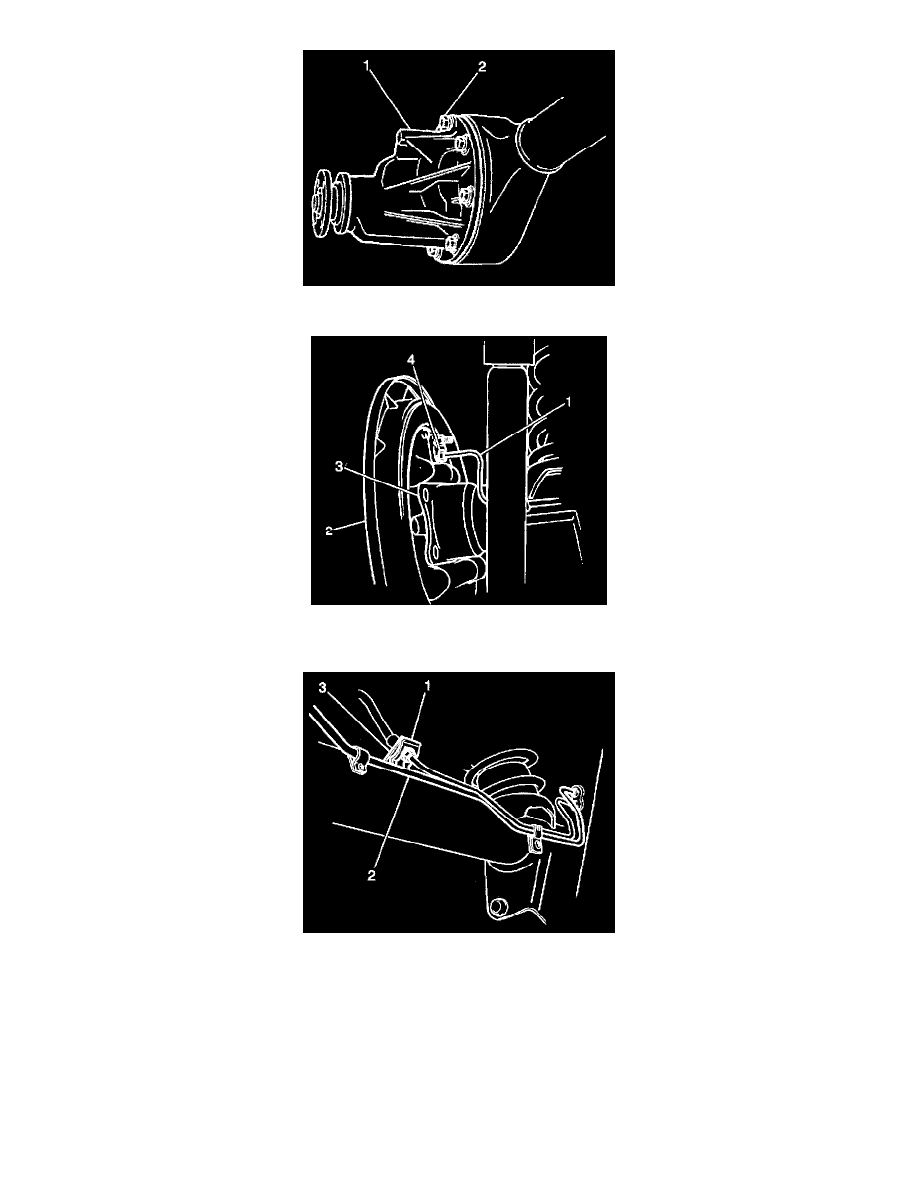

15. Remove the 8 nuts (1) and the differential carrier from the rear axle housing.

16. Remove the rear brake fluid pipes (1) from the rear wheel cylinders.
17. Separate both of the brake backing plates (2) from the rear axle housing (3).

18. Remove the 1 clip (1) and the brake fluid hose from the rear axle housing brake fluid hose bracket (3).
19. Disconnect the wheel speed sensor coupler (If ABS equipped).
20. Remove the harness clamp from the chassis frame.
