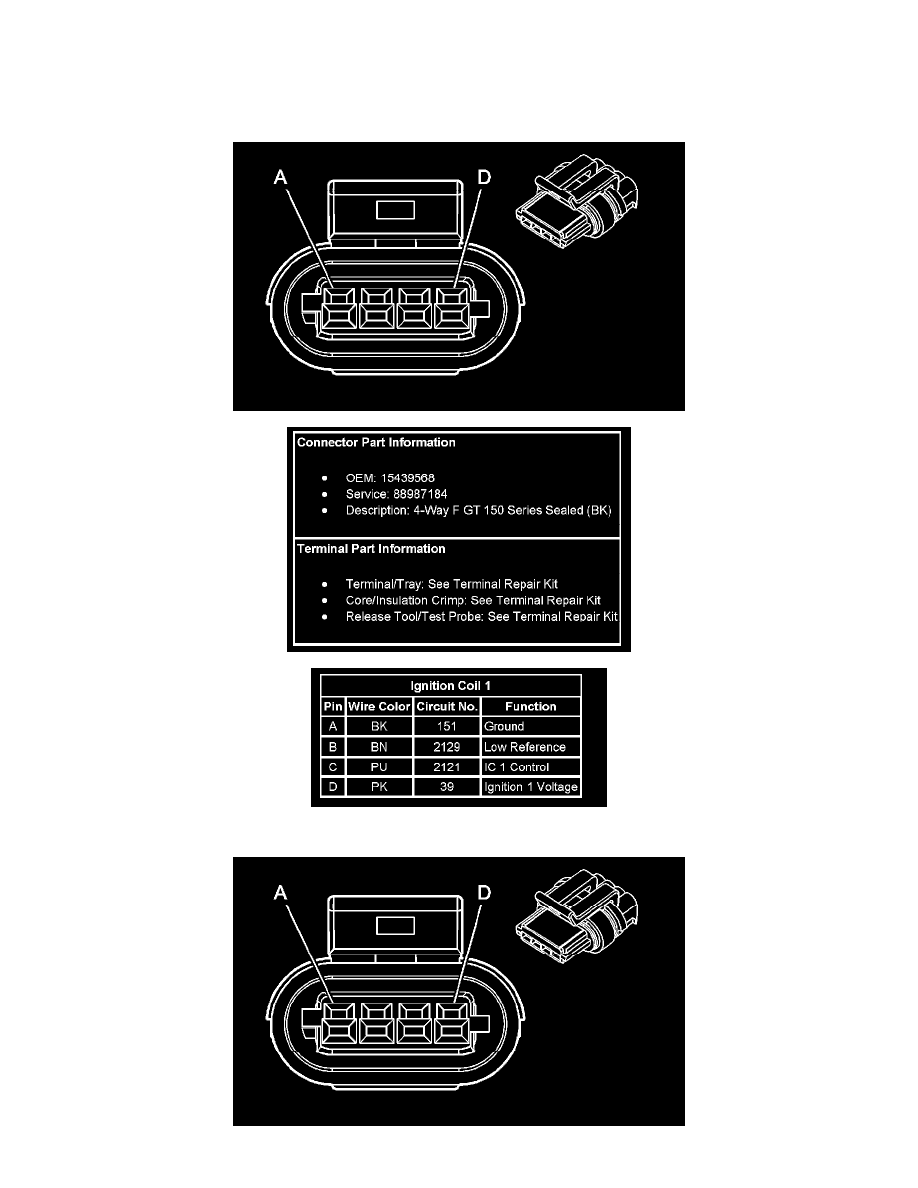

Ignition Coil: Diagrams

Engine Controls Connector End Views

Ignition Coil 1

Ignition Coil 2

Powertrain Management
Ignition System
Ignition Coil
Component Information
Diagrams
