Flex Plate: Specifications
- Make
- Chevrolet
- Model
- TrailBlazer 2WD
- Engine
- V8-6.0L
- Year
- 2009
- Section
- Flex Plate › Specifications
Flex Plate: Specifications

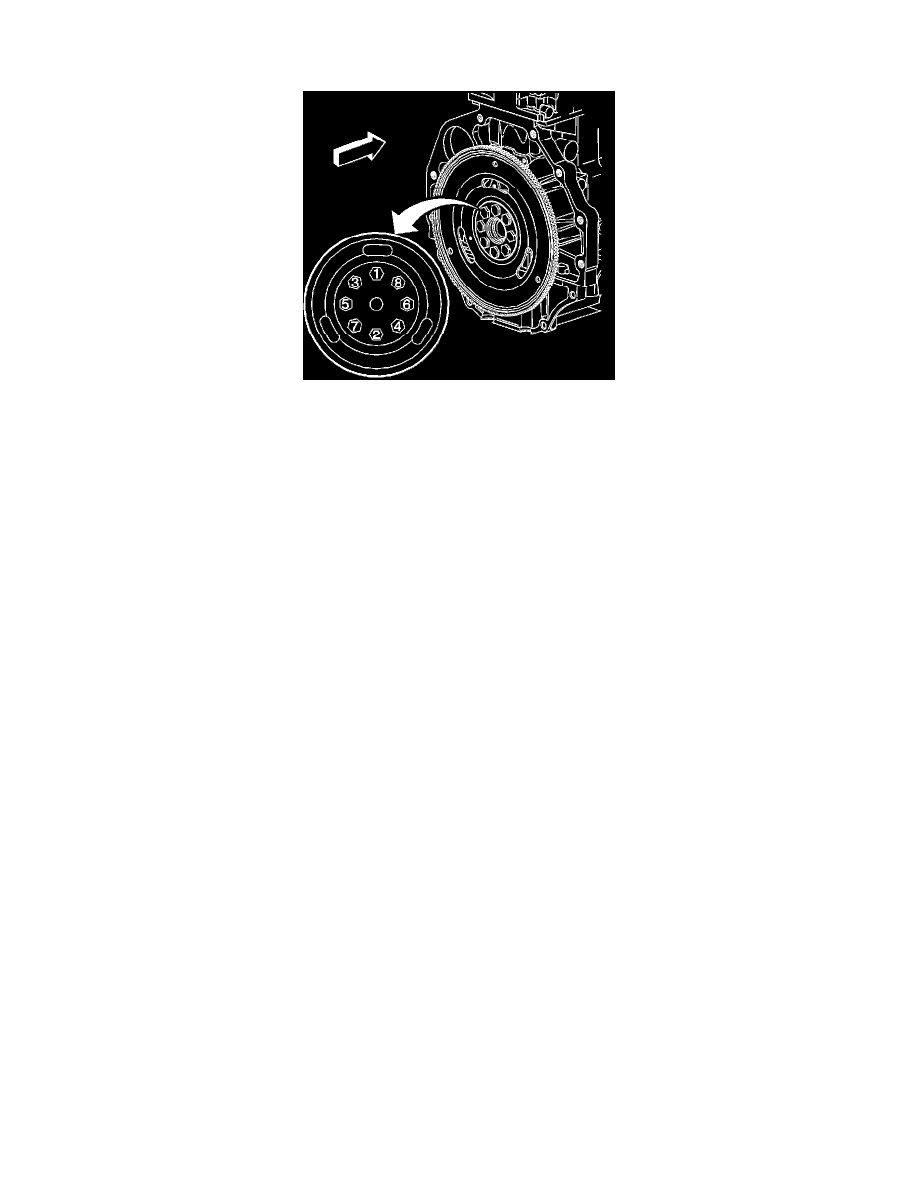

FLYWHEEL/FLEXPLATE
Flywheel Bolts
First Pass.......................................................................................................................................................................................................20 Nm (15 lb ft)
Second Pass...................................................................................................................................................................................................50 Nm (37 lb ft)
Final Pass....................................................................................................................................................................................................100 Nm (74 lb ft)
