200 L4-24L (2011) Towing Information Service and Repair
Towing Information: Service and Repair
STANDARD PROCEDURE - TOWING, Vehicle
WARNINGS AND PRECAUTIONS
WARNING: Do not allow towing attachment devices to contact the fuel tank or lines, fuel leakage can result. Do not lift or tow vehicle by front
or rear bumper, or bumper energy absorber units. Do not venture under a lifted vehicle if not supported properly on safety
stands. Do not allow passengers to ride in a towed vehicle. Use a safety chain that is independent from the towing attachment
device. Failure to follow these instructions may result in personal injury or death.
CAUTION: Do not damage brake lines, exhaust system, shock absorbers, sway bars, or any other under vehicle components when attaching
towing device to vehicle. Do not attach towing device to front or rear suspension components. Do not secure vehicle to towing
device by the use of front or rear suspension or steering components. Remove or secure loose or protruding objects from a
damaged vehicle before towing. Refer to state and local rules and regulations before towing a vehicle. Do not allow weight of
towed vehicle to bear on lower fascia, air dams, or spoilers.
RECOMMENDED TOWING EQUIPMENT
To avoid damage to bumper fascia and air dams use of a flat bed towing device or wheel lift is recommended. When using a wheel lift towing device, be
sure the unlifted end of disabled vehicle has at least 100 mm (4 in.) ground clearance. If minimum ground clearance cannot be reached, use a towing
dolly. If a flat bed device is used, the approach angle should not exceed 15 degrees.

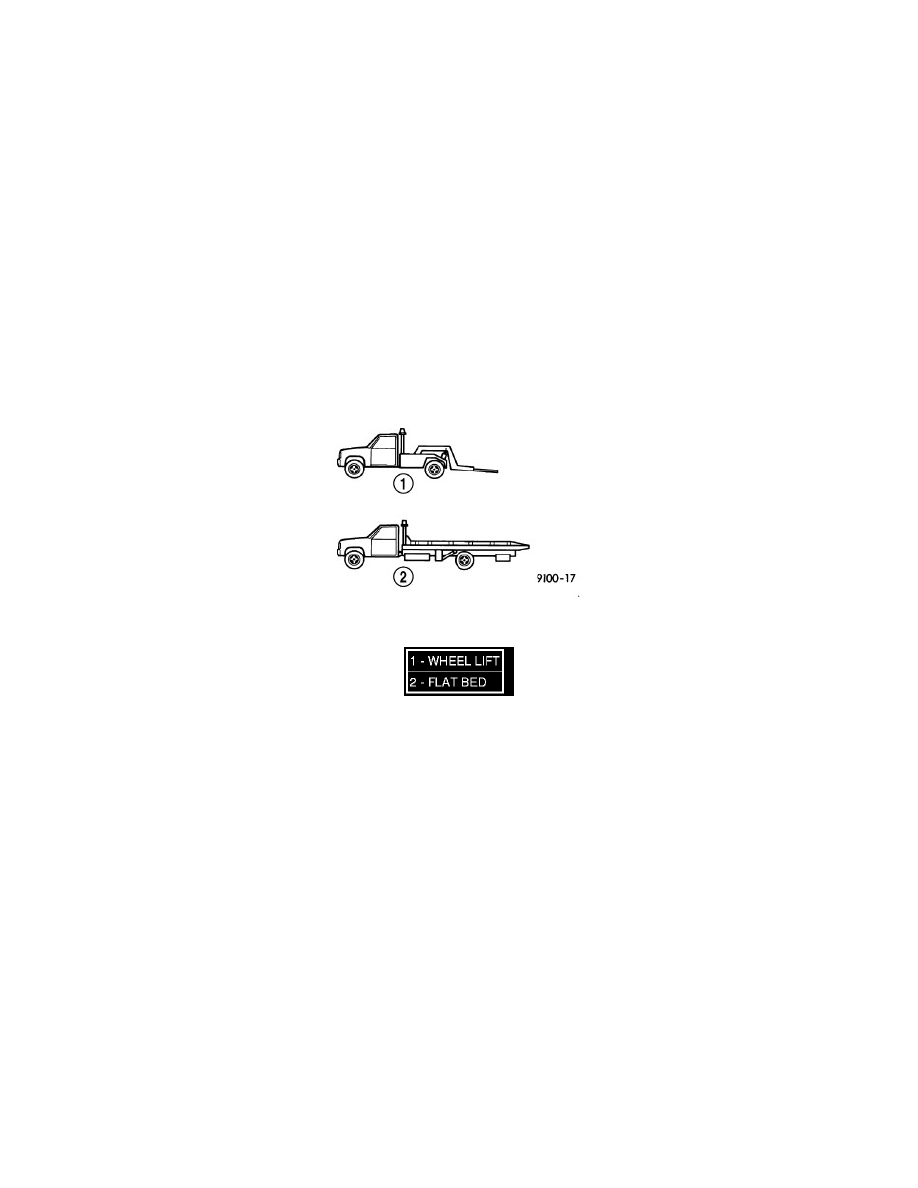

Recommended Towing Equipment
GROUND CLEARANCE
CAUTION: If vehicle is towed with wheels removed, install lug nuts to retain brake drums or rotors.
A towed vehicle should be raised until the lifted wheels are a minimum 100 mm (4 in.) from the ground. Be sure there is at least 100 mm (4 in.)
clearance between the tail pipe and the ground. If necessary, remove the wheels from the lifted end of the vehicle and lower the vehicle closer to the
ground, to increase the ground clearance at the rear of the vehicle. Install lug nuts on wheel attaching studs to retain brake drums or rotors.
LOCKED VEHICLE TOWING
When a locked vehicle must be towed with the front wheels on the ground, use a towing dolly or flat bed hauler.
FLAT TOWING WITH TOW BAR
-
Three speed automatic transaxle vehicles can be flat towed at speeds not to exceed 40 km/h (25 mph) for not more than 25 km (15 miles). The
steering column must be unlocked and gear selector in neutral.
-
Five speed manual transaxle vehicles can be flat towed at any legal highway speed for extended distances. The gear selector must be in the neutral
position.
FLAT BED TOWING TIE DOWNS
CAUTION: Do not tie vehicle down by attaching chains or cables to suspension components or engine mounts, damage to vehicle can result.
JS vehicles can be tied to a flat bed device using the reinforced loops located under the front and rear bumpers on the drivers side of the vehicle. There
are also four reinforced elongated holes for T or R hooks located on the bottom of the front frame rail torque boxes behind the front wheels and forward
