Fuse: Locations (page 2 of 3)
- Make
- Chrysler
- Model
- 200
- Engine
- L4-2.4L
- Year
- 2011
- Section
- Fuse
Power and Ground DistributionLocations · page 2 of 3

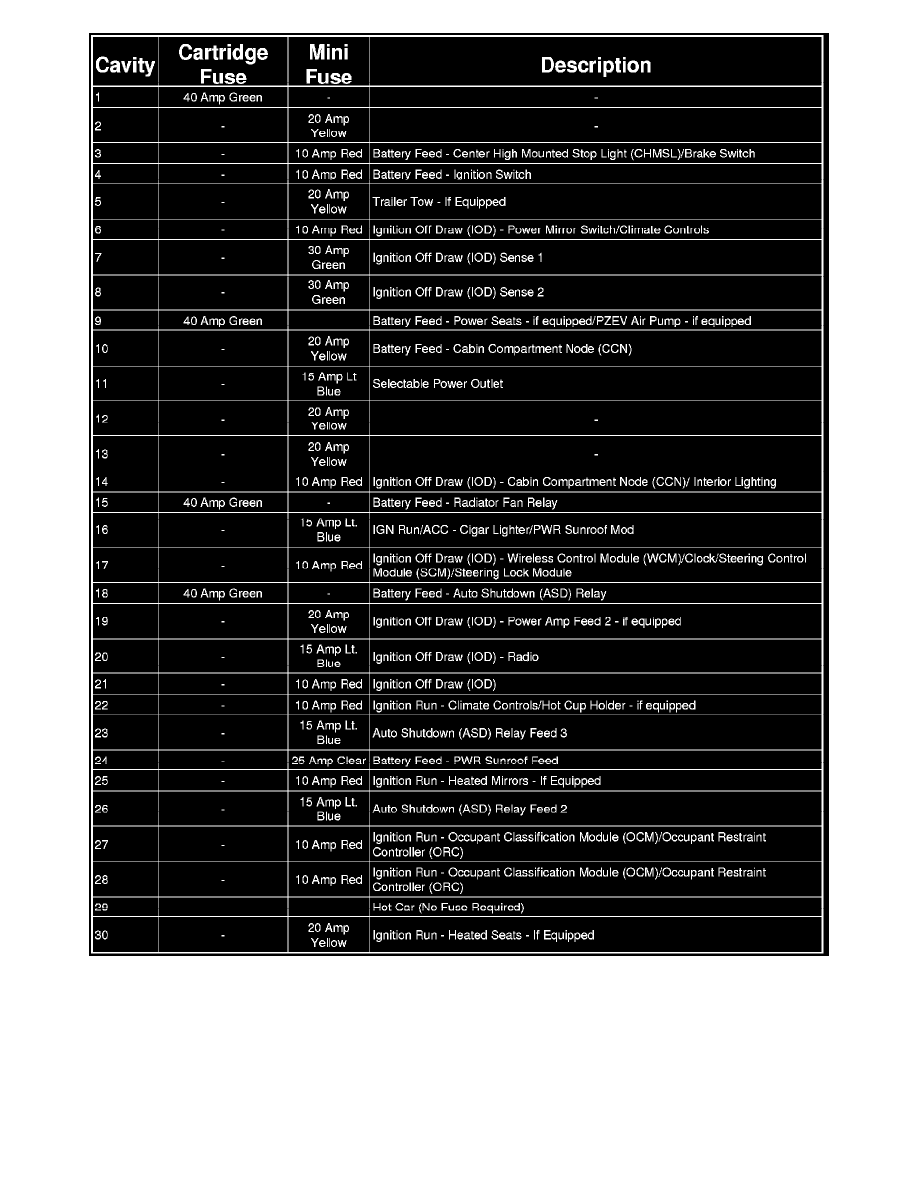

Fuse: Locations (page 2 of 3) – diagram from the Power and Ground Distribution chapter of the Chrysler 200 L4-2.4L (2011) factory manual.
