Ash Tray: All Technical Service Bulletins
Ash Receiver Cup - Rattle

NO: 23-19-94
GROUP: Body
DATE: Feb. 25, 1994

SUBJECT:
Ash Receiver Cup Rattle

MODELS:
1993 - 1994 (LH) Concorde/Intrepid/Vision

SYMPTOM/CONDITION:

Rattle from center floor console area. Can be eliminated by removing the ash receiver cup.

PARTS REQUIRED:

1

4773968

Felt Tape

REPAIR PROCEDURE:

This repair involves insulating the ash receiver cup from the center console.

1.

Remove the ash receiver cup from the center floor console.

2.

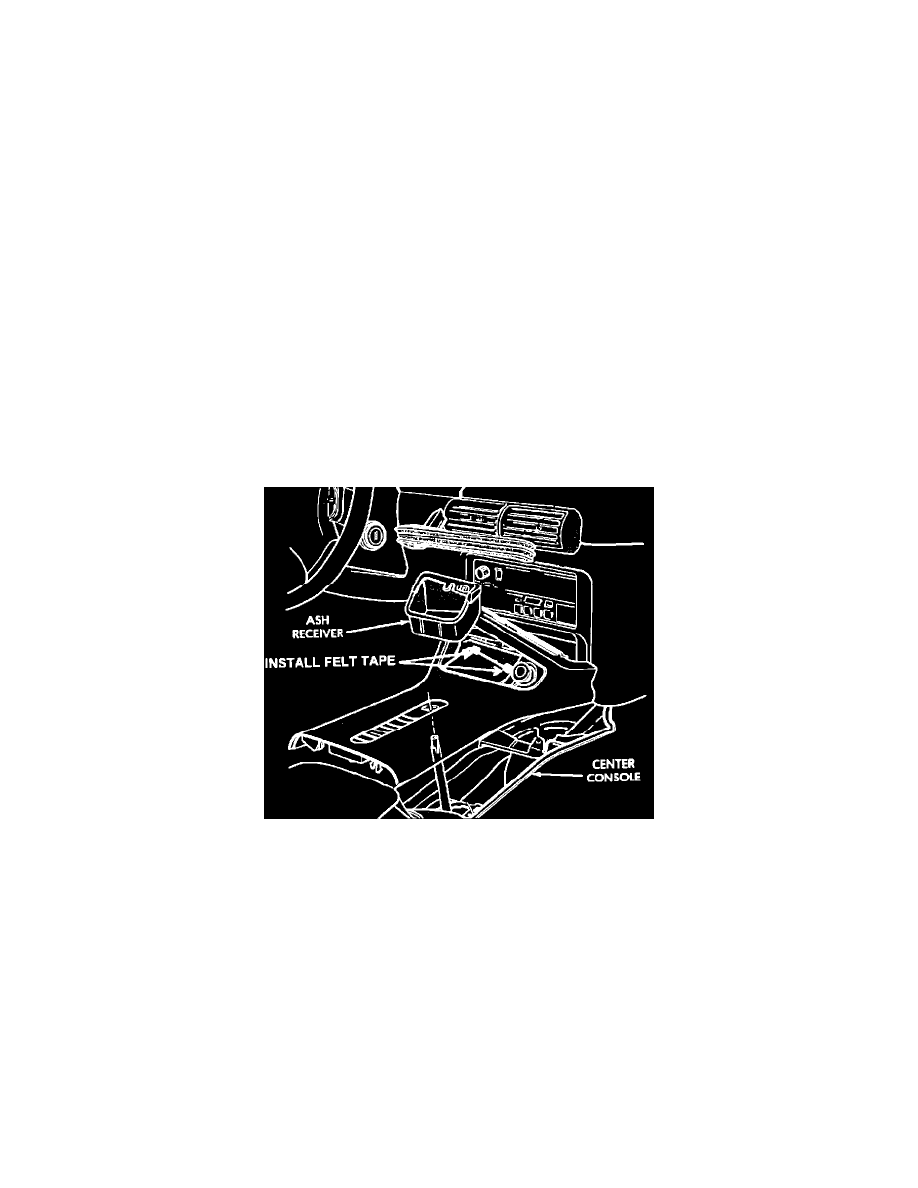

Install two (2) 1 " pieces of felt tape as indicated.

POLICY:  Reimbursable within the provisions of the warranty.

TIME ALLOWANCE:
Labor Operation No.   23-11-05-90    0.2 Hrs.

FAILURE CODE:  XX - Service Adjustments
