Concorde V6-3.5L VIN F (1994)
Ash Tray: Customer Interest
Ash Receiver Cup - Rattle
NO: 23-19-94
GROUP: Body
DATE: Feb. 25, 1994
SUBJECT:
Ash Receiver Cup Rattle
MODELS:
1993 - 1994 (LH) Concorde/Intrepid/Vision
SYMPTOM/CONDITION:
Rattle from center floor console area. Can be eliminated by removing the ash receiver cup.
PARTS REQUIRED:
1
4773968
Felt Tape
REPAIR PROCEDURE:
This repair involves insulating the ash receiver cup from the center console.
1.
Remove the ash receiver cup from the center floor console.
2.

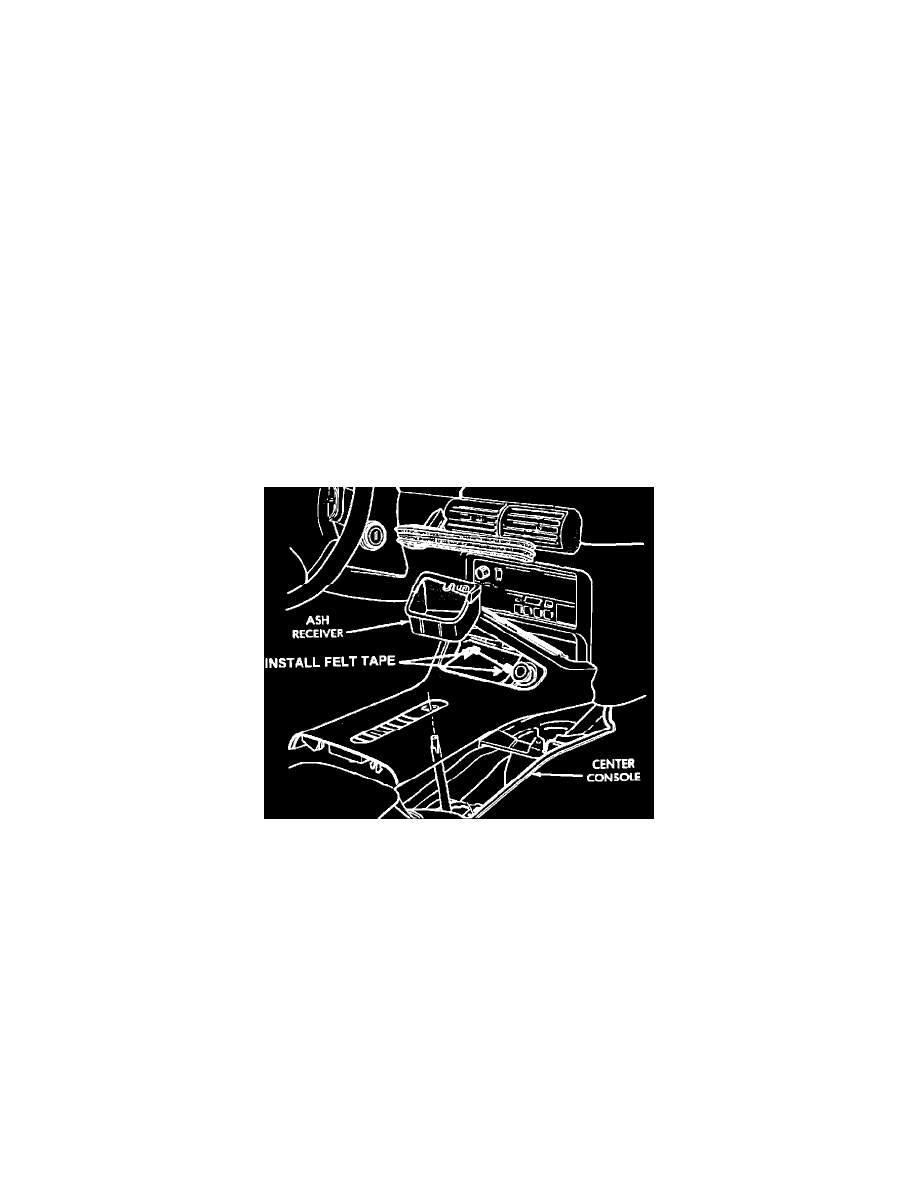

Install two (2) 1 " pieces of felt tape as indicated.
POLICY: Reimbursable within the provisions of the warranty.
TIME ALLOWANCE:
Labor Operation No. 23-11-05-90 0.2 Hrs.
FAILURE CODE: XX - Service Adjustments
