Concorde V6-3.5L VIN F (1994)
Compressor Clutch: Service and Repair
REMOVAL
NOTE: Compressor assembly must be removed from mounting. Although, refrigerant discharge is not necessary.

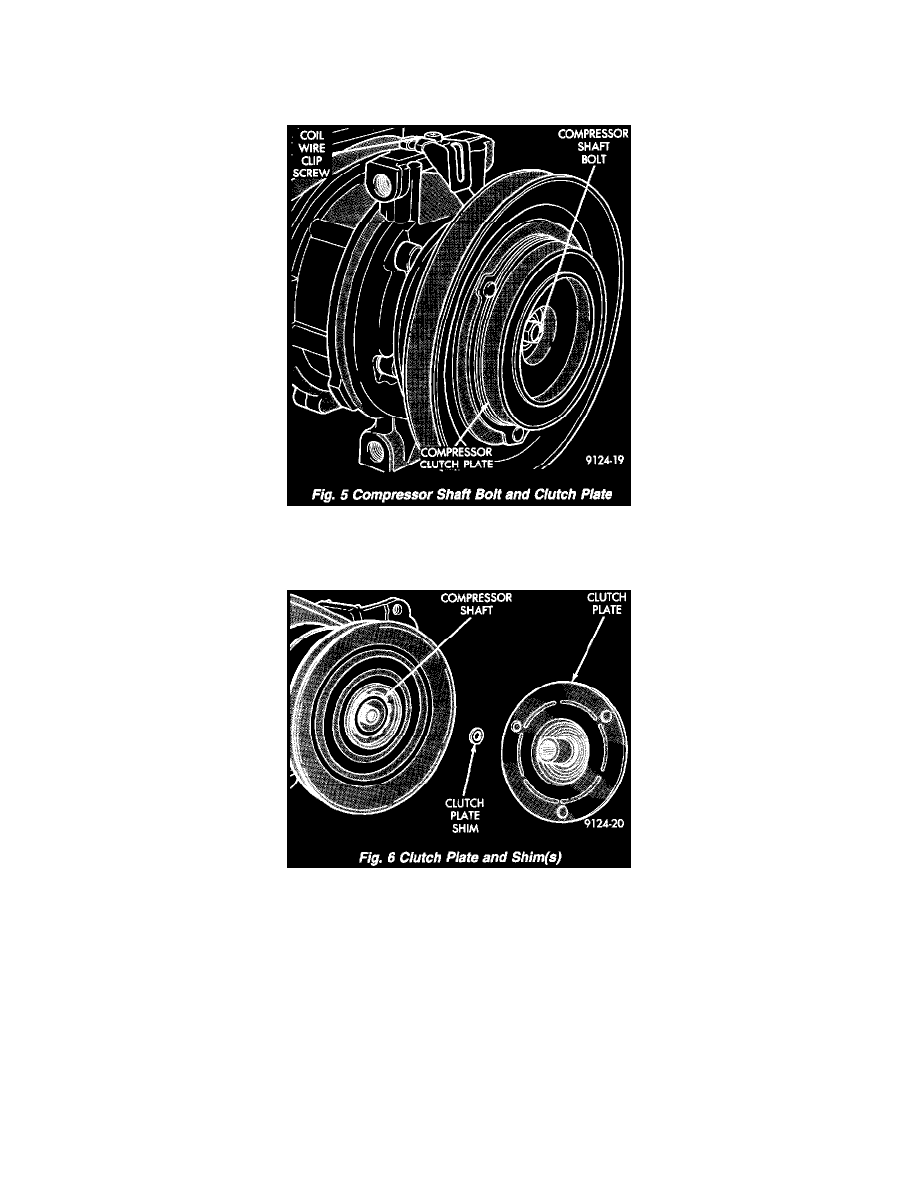

Compressor Shaft Bolt And Clutch Plate
1. Remove the compressor shaft bolt. A band type oil filter removal tool can be placed around the clutch plate to aid in bolt removal.
Clutch Plate And Shims
2. Tap the clutch plate with a plastic hammer and remove clutch plate and shim(s).
CAUTION: Do not use screwdrivers between the clutch plate assembly and pulley to remove front plate as this may damage the front plate
assembly.
