Suspension and Steering (Alignment)
- Make
- Chrysler
- Model
- Pacifica
- Engine
- V6-3.8L
- Year
- 2008
- Section
- Alignment › System Diagnosis › Suspension and Steering
MaintenanceSuspension and Steering · page 1 of 3

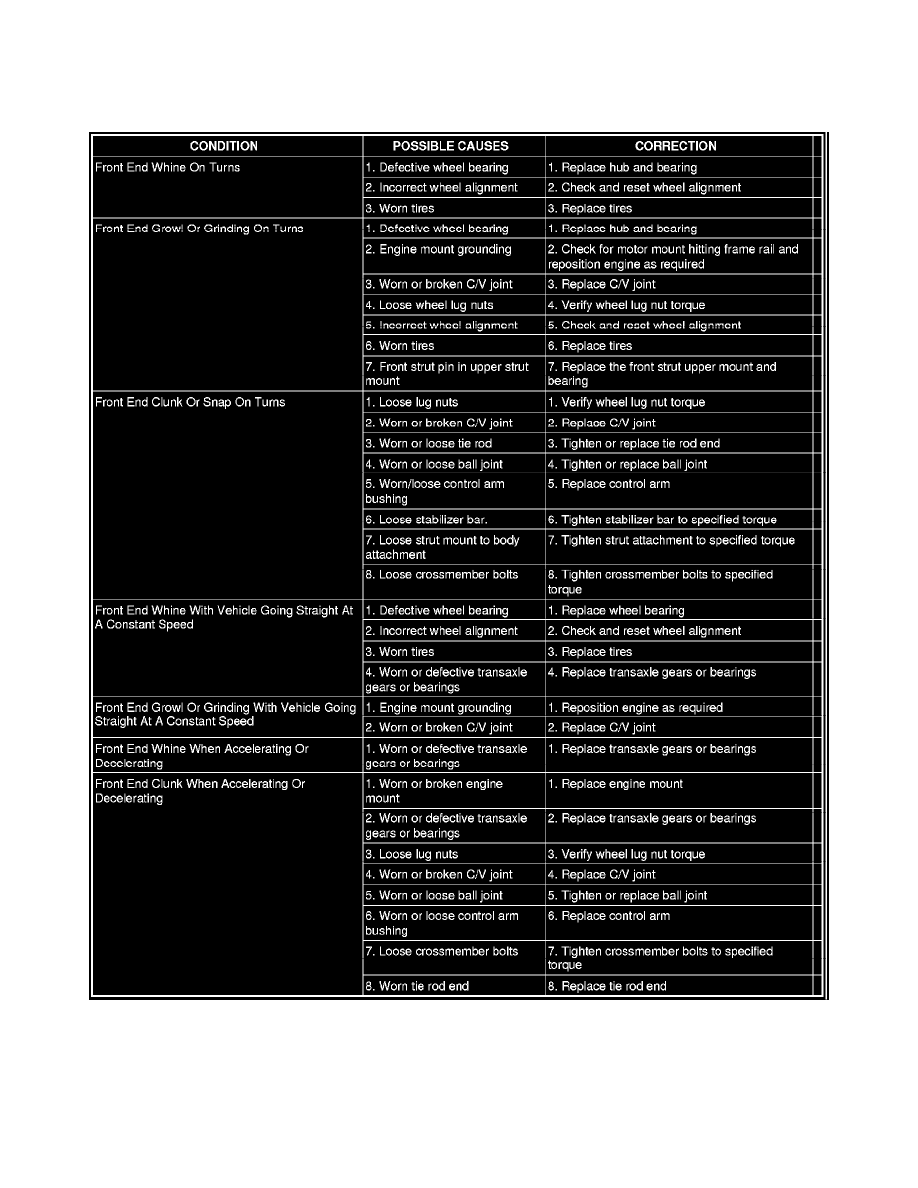

Suspension and Steering (Alignment) – diagram from the Maintenance chapter of the Chrysler Pacifica V6-3.8L (2008) factory manual.
Pinch or Ctrl + scroll to zoom. Double-tap to reset.
