Pacifica V6-3.8L VIN L (2005)
Parking Assist Control Module: Service and Repair
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the left quarter trim panel.

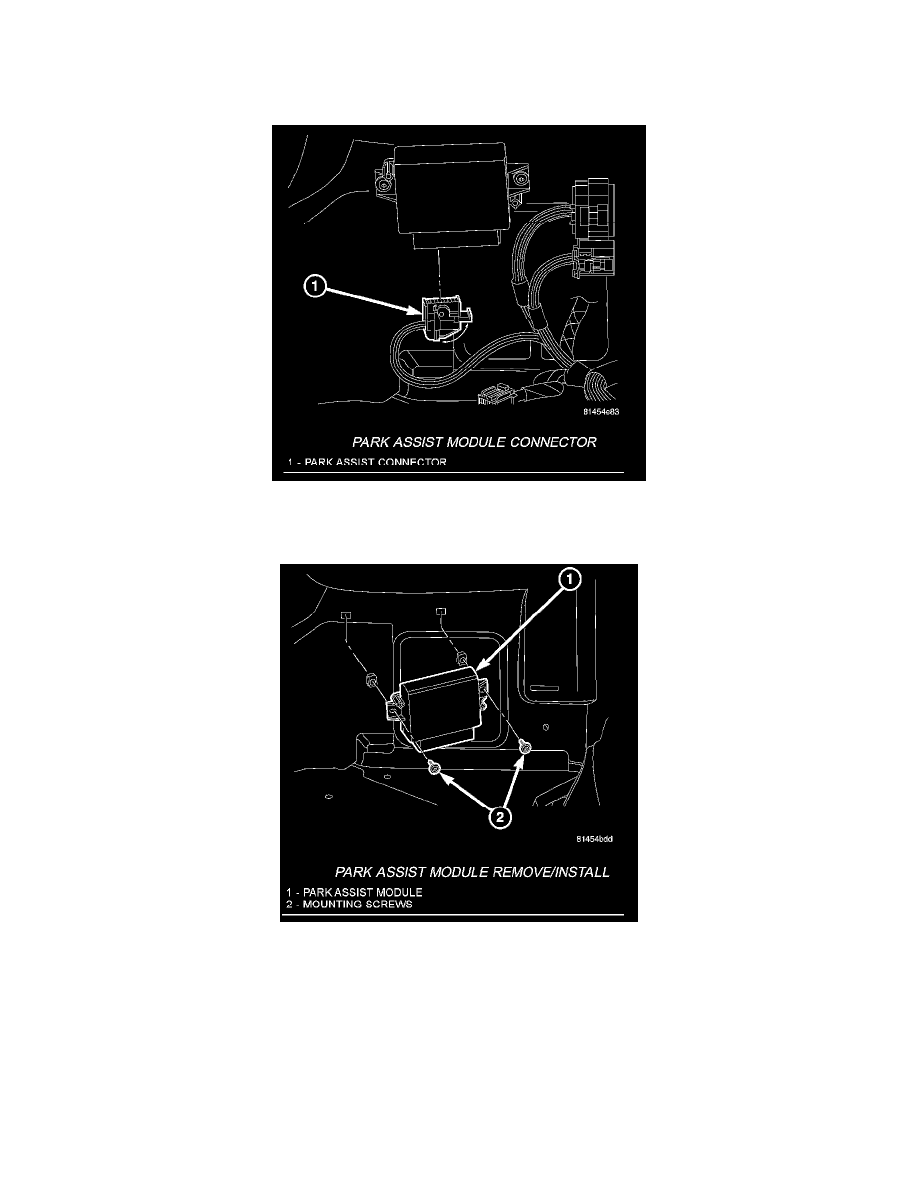

Park Assist Module Connection
3. Disconnect the Park Assist Module electrical connector.
Park Assist Module Remove/Install
4. Remove the two attaching screws and separate the module from vehicle.
INSTALLATION
1. Position the Park Assist Module and install the two attaching screws. Torque screws to 3.5 N.m (30 in. lbs.).
2. Connect the Park Assist Module electrical connector.
3. Install the left quarter trim panel.
4. Connect the battery negative cable.
