Pacifica V6-3.8L VIN L (2005)
![background image](/chrysler/pacifica/v6-3.8l_vin_l/Page-1916001.png)

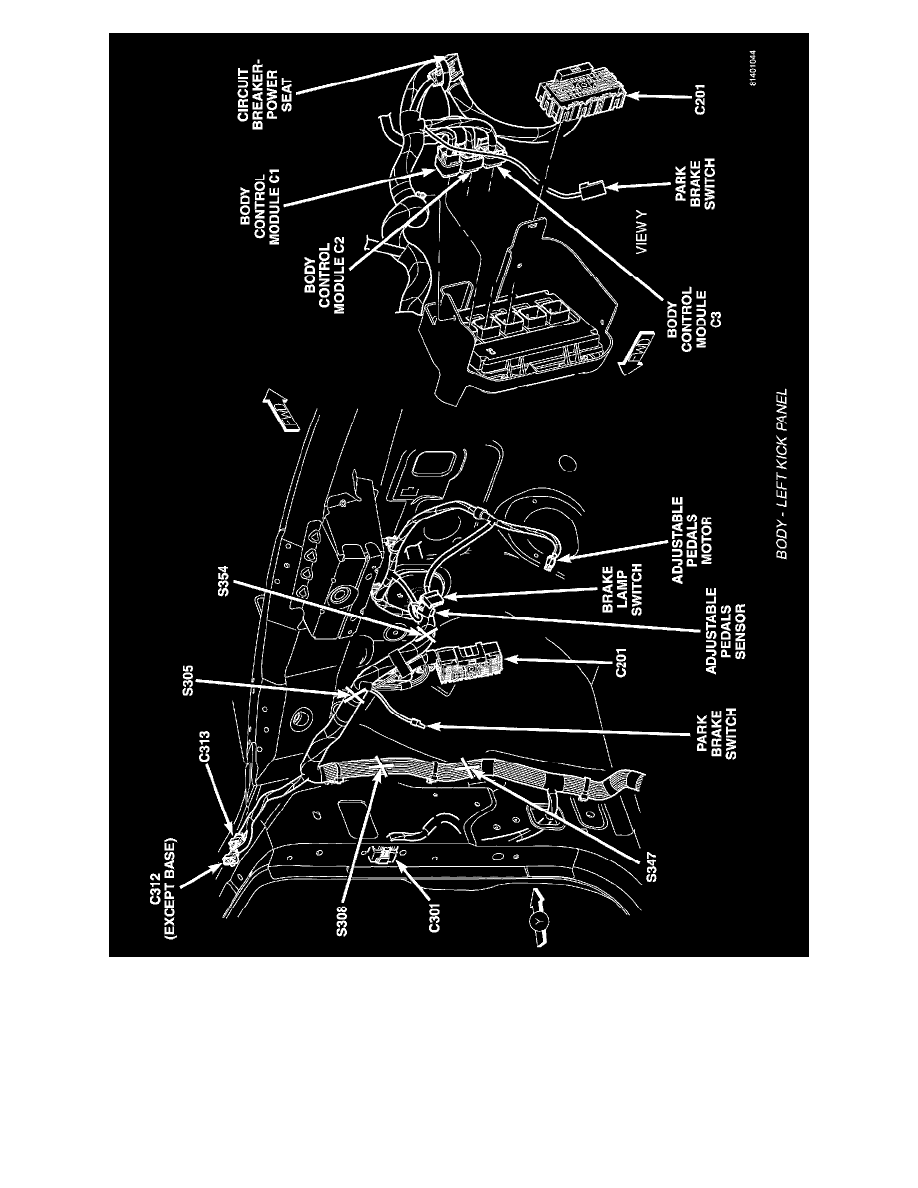

Pedal Positioning Sensor: Service and Repair
PEDAL POSITION SENSOR BRAKE
REMOVAL
1. Remove battery ground (-) cable from battery negative post and isolate.
2. Remove two mounting screws securing pedal position sensor in place (Fig. 4).
3. Remove pedal position sensor from pedals bracket.
4. Disconnect wiring connector and remove pedal position sensor.
INSTALLATION
1. Connect wiring connector to brake pedal position sensor.
NOTE: Make sure pin in pedal assembly fits into slot in sensor carriage when installing sensor.
2. Place sensor against mounting bracket and into brake pedal (Fig. 4). Move carriage as necessary to align slot with pin. Install two mounting
screws. Tighten screws to 7.5 Nm (66 inch lbs.) torque.
3. Connect ground (-) cable to negative post of battery.
