Pacifica V6-3.8L VIN L (2005)
Speaker: Service and Repair
Front Door Speaker
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the front door trim panel.
3. Remove the mounting fasteners.

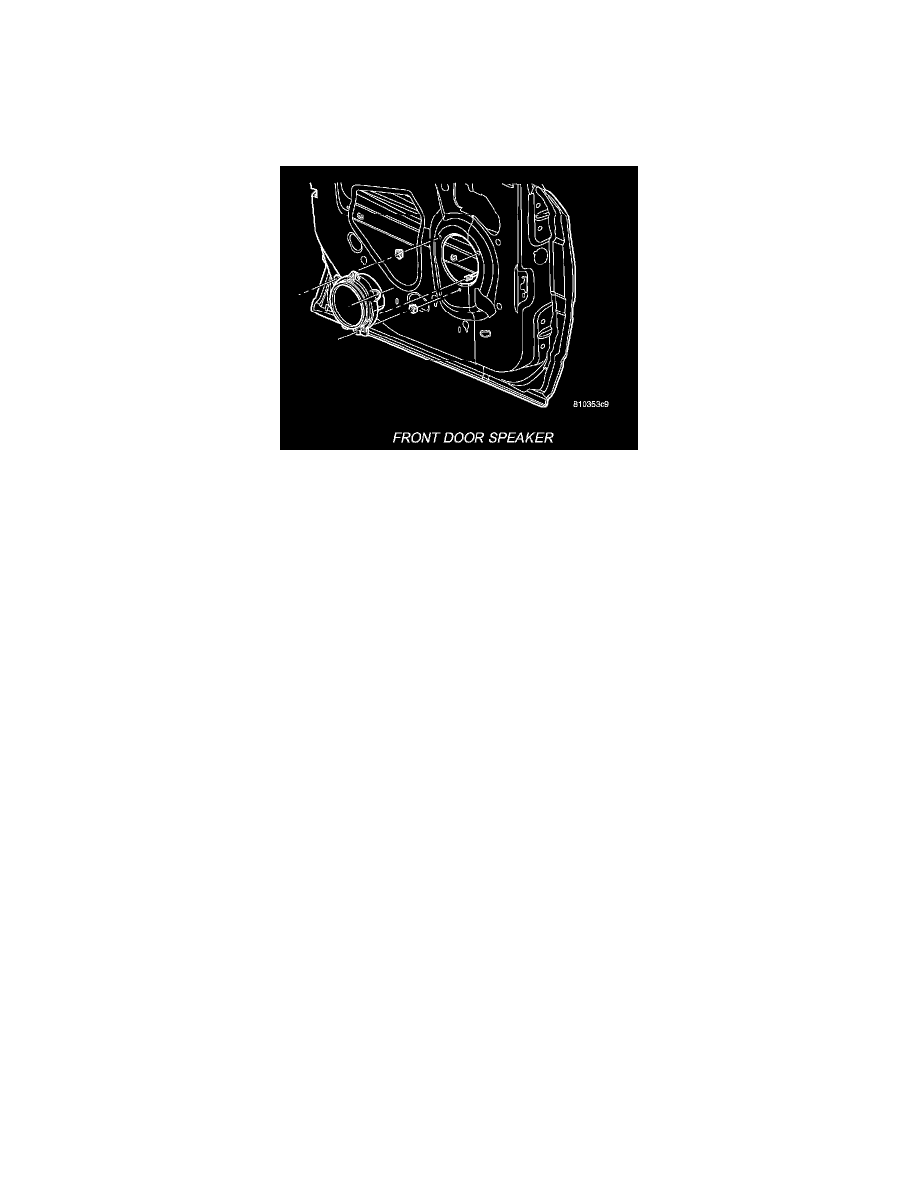

Front Door Speaker
4. Disconnect the electrical harness connector and remove speaker.
INSTALLATION
1. Connect electrical harness connector and position speaker to door.
2. Install mounting fasteners. Tighten to 3 N.m (28 in. lbs.).
3. Install front door trim panel.
4. Connect battery negative cable.
