Pacifica V6-3.8L VIN L (2005)
![background image](/chrysler/pacifica/v6-3.8l_vin_l/Page-1958002.png)

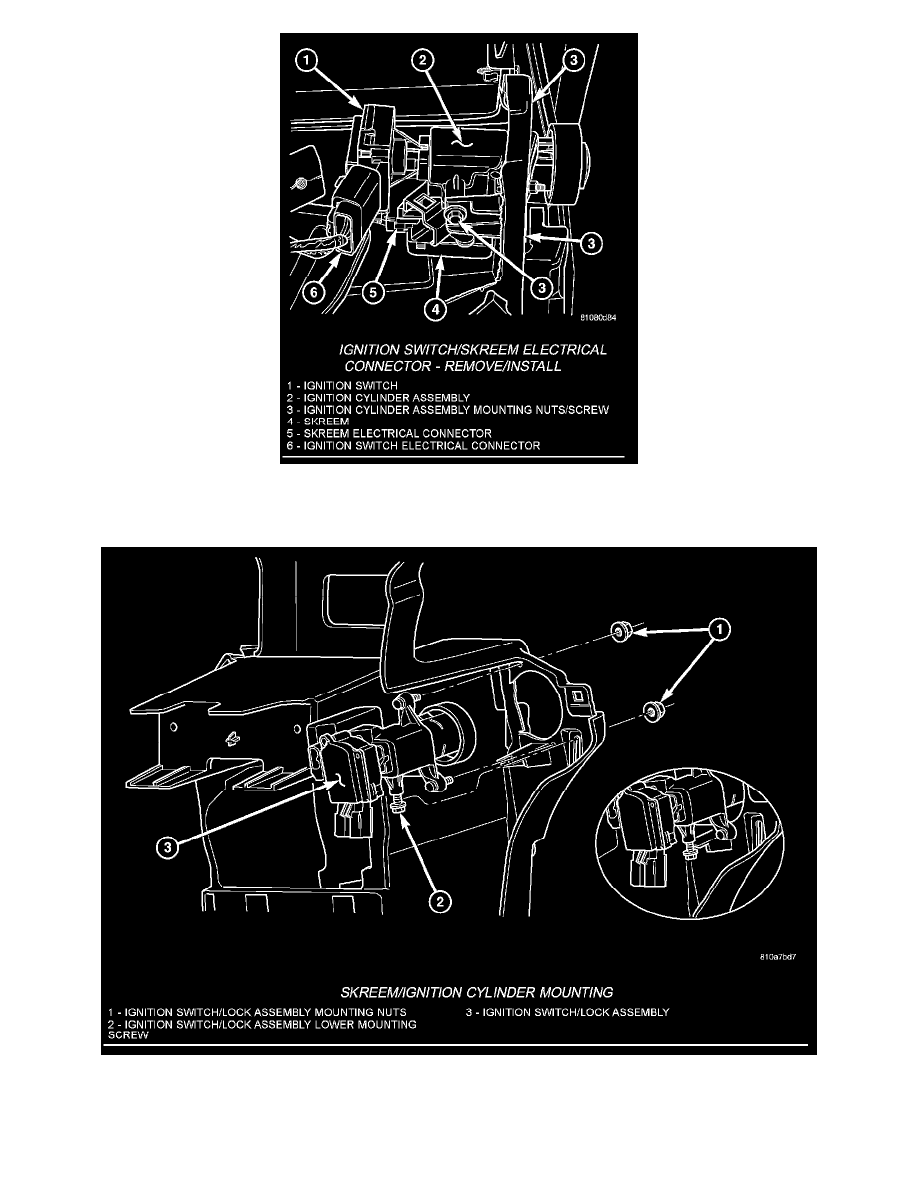

Ignition Switch/Skreem Electrical Connector - Remove/Install
5. Reach up behind the left side of the center stack and disconnect the ignition switch and SKREEM electrical connectors.
Skreem/Ignition Cylinder Mounting
6. From underneath the ignition switch/lock assembly, loosen the lower retaining screw.
7. Remove the two mounting nuts from the front of the instrument panel.
