Pacifica V6-3.8L VIN L (2005)

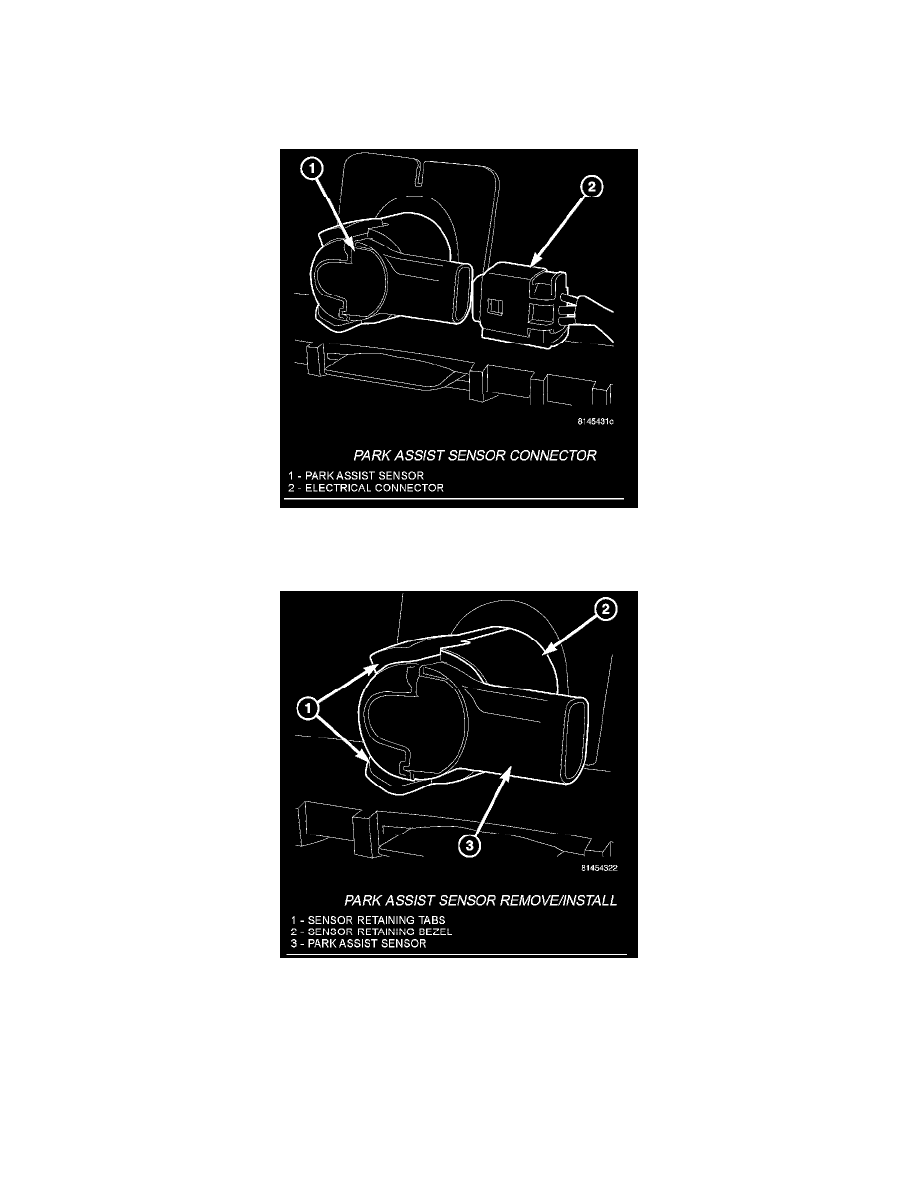

Park Assist Sensor Bezel
5. If the bezel is either damaged or broken during removal of the sensor, gently press in on the bezel retaining tabs and then push bezel out of fascia.
INSTALLATION
1. If bezel was damaged and replaced, align over hole in fascia and firmly snap into place.
2. Position the Park Assist Sensor over the retaining bezel and firmly snap into place.
3. Connect the electrical connector.
4. Install the rear fascia.
5. Connect the battery negative cable.
